C311 (DECKLID Side) Connector End View
C311 (DECKLID Side) Connector End View

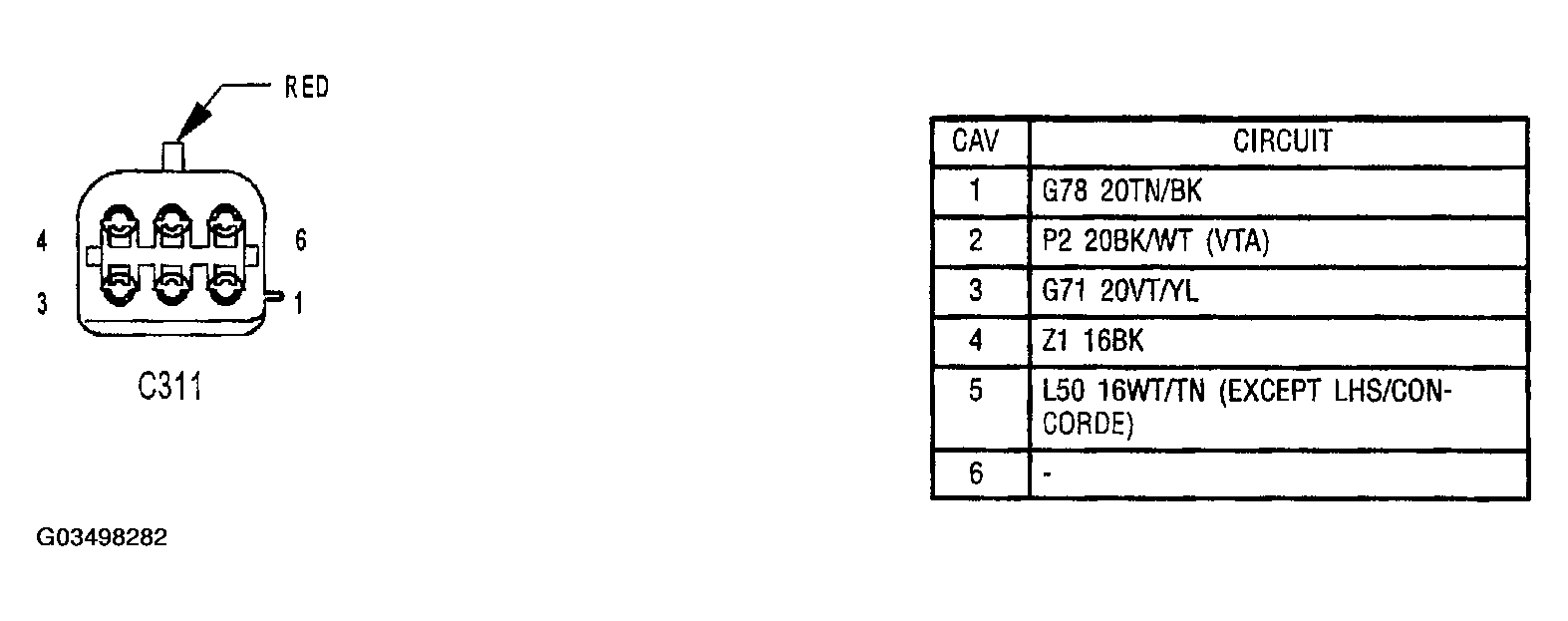

Fig 1: Decklid Side Inline Connector End View (C311)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
