Connector End Views
›
Junction Block C1 Connector End View
Junction Block C1 Connector End View

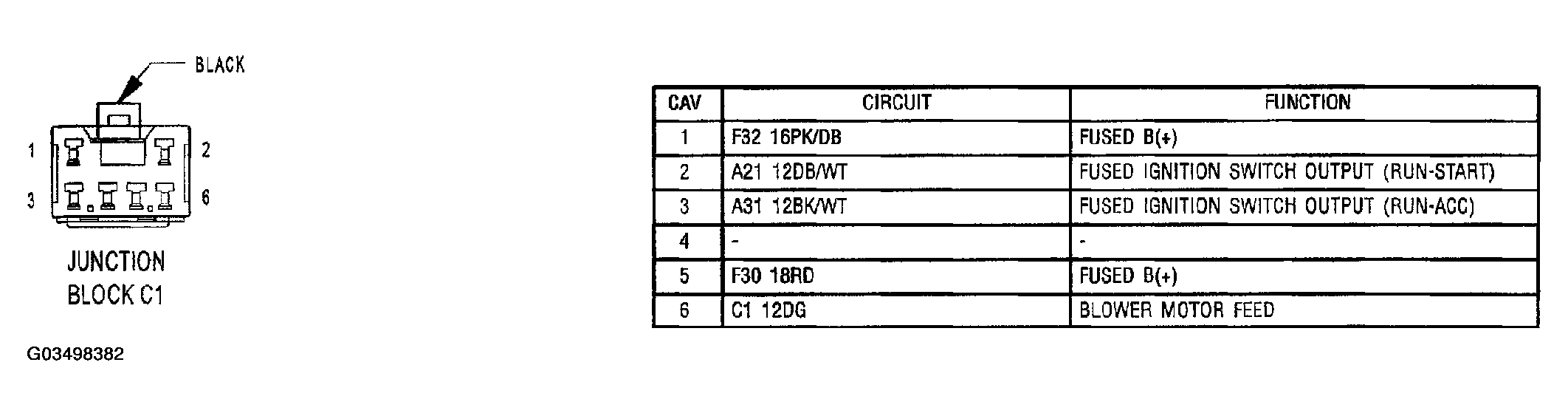

Fig 1: Junction Block Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
