Mode Door Actuator Connector End View
Mode Door Actuator Connector End View

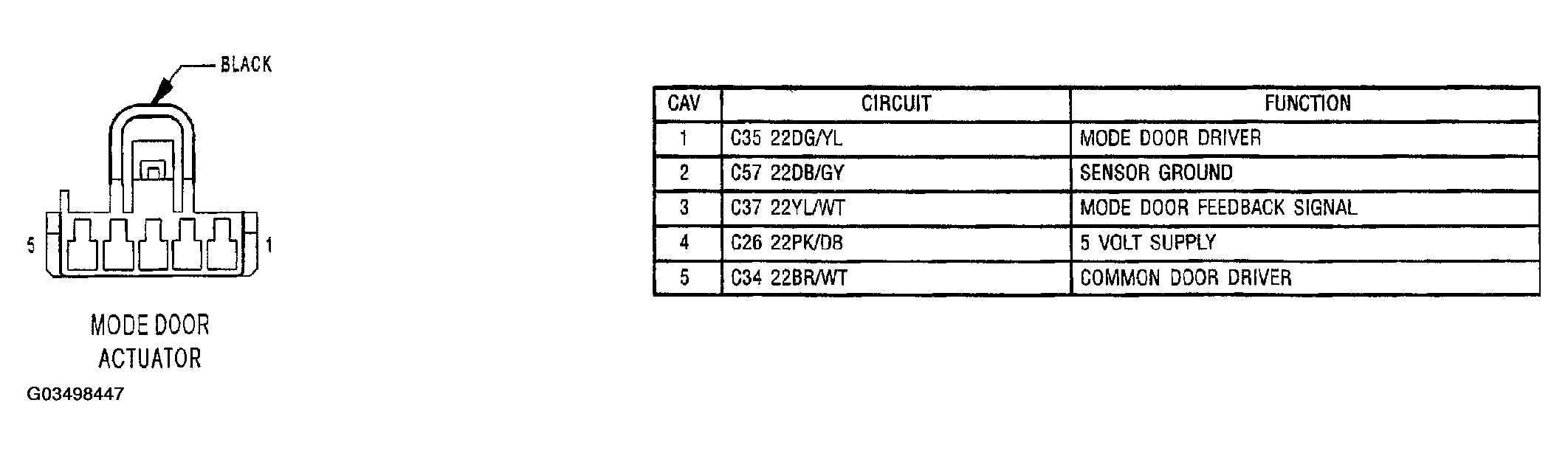

Fig 1: Mode Door Actuator Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
