Satellite Radio Multiplexer C2 Connector End View
Satellite Radio Multiplexer C2 Connector End View

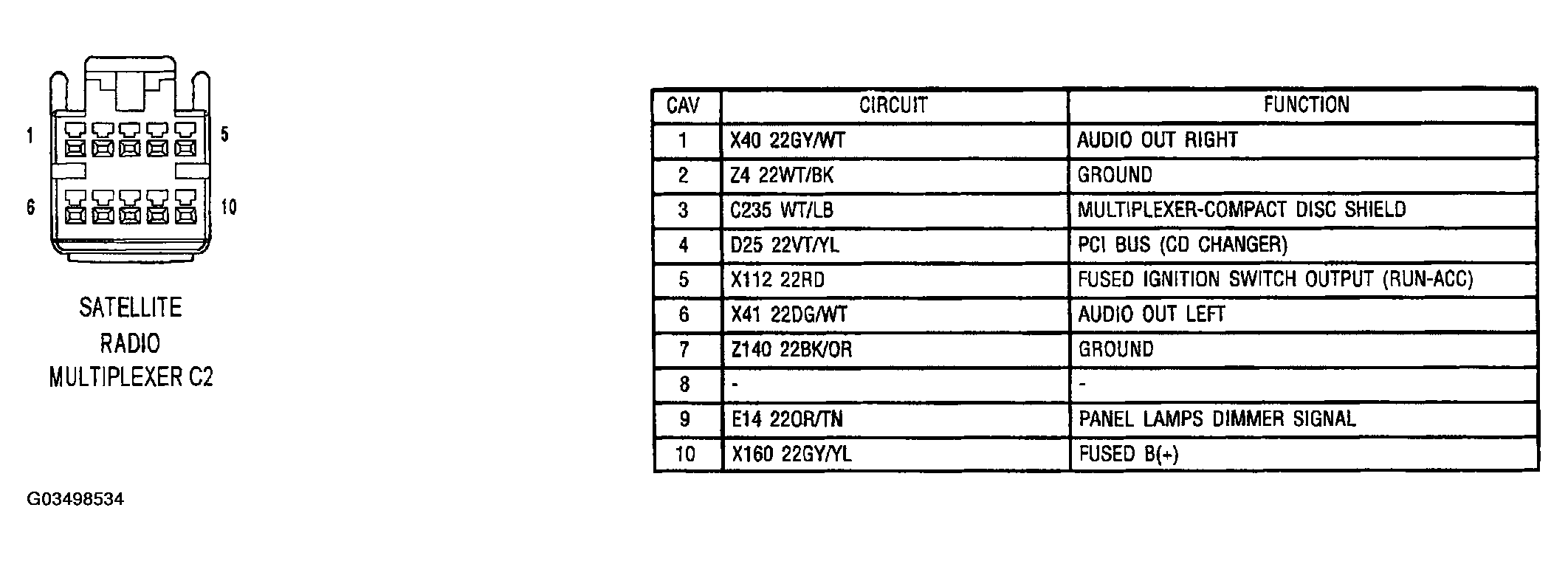

Fig 1: Satellite Radio Multiplexer Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
