Installation - 3.5L

Install the IAC to the throttle body (Fig 1).

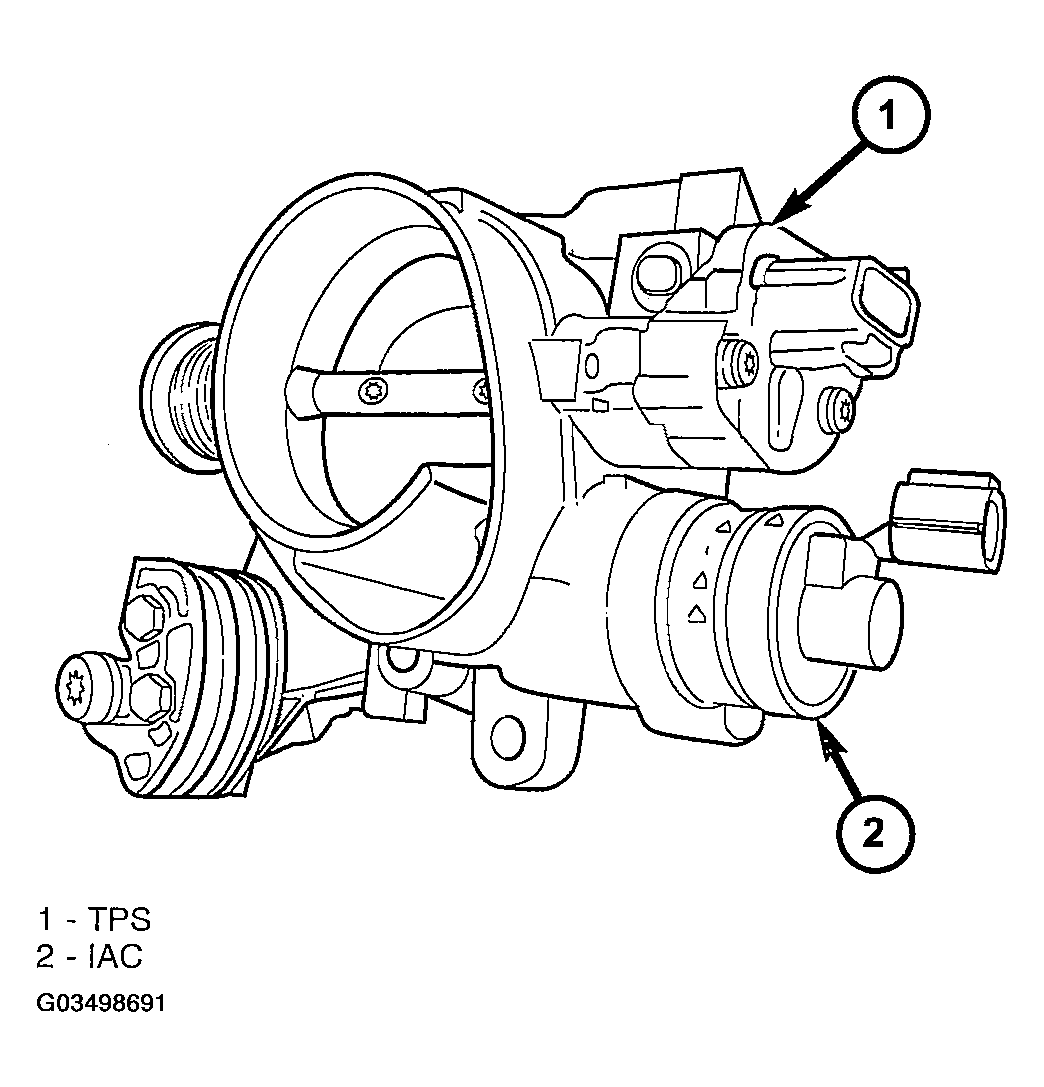

Fig 1: Idle Air Control Motor
Courtesy of DAIMLERCHRYSLER CORP.
Tighten mounting screw to 7.3 N.m (65 in.lbs.) torque.
(3.) Attach electrical connector to the IAC.
Install air plenum and tighten the clamp.
Connect the negative battery cable.
