A/C Compressor Clutch
A/C Compressor Clutch

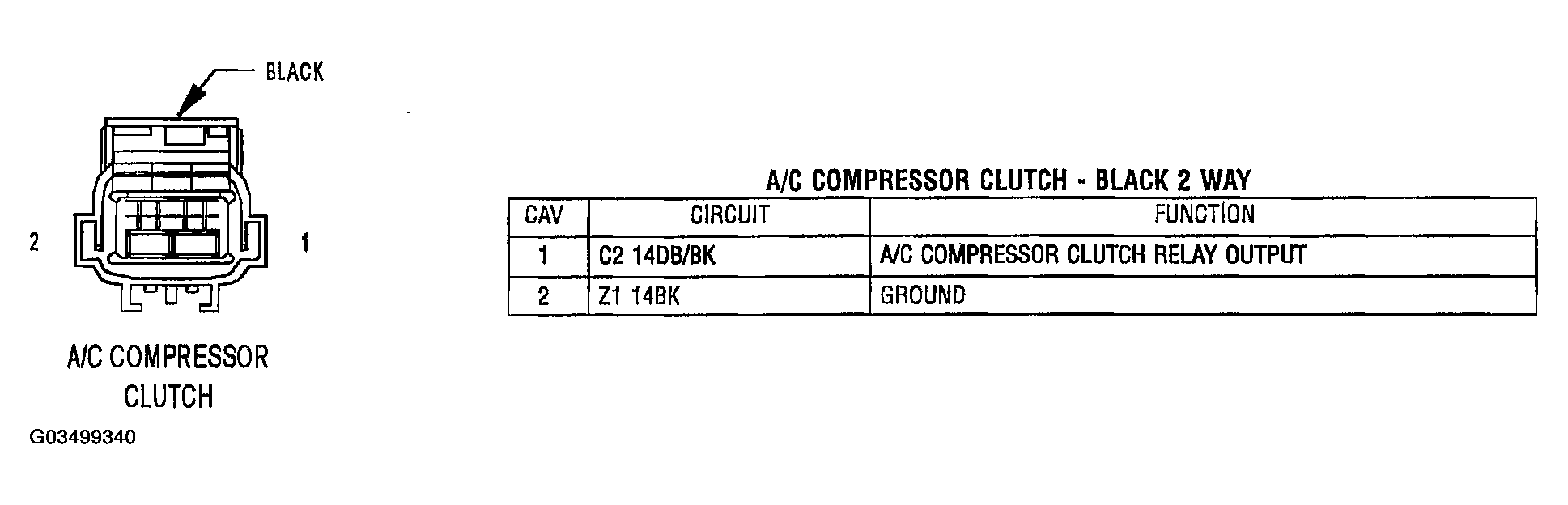

Fig 1: Identifying A/C Compressor Clutch Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
