Coil On Plug No. 1
Coil On Plug No. 1

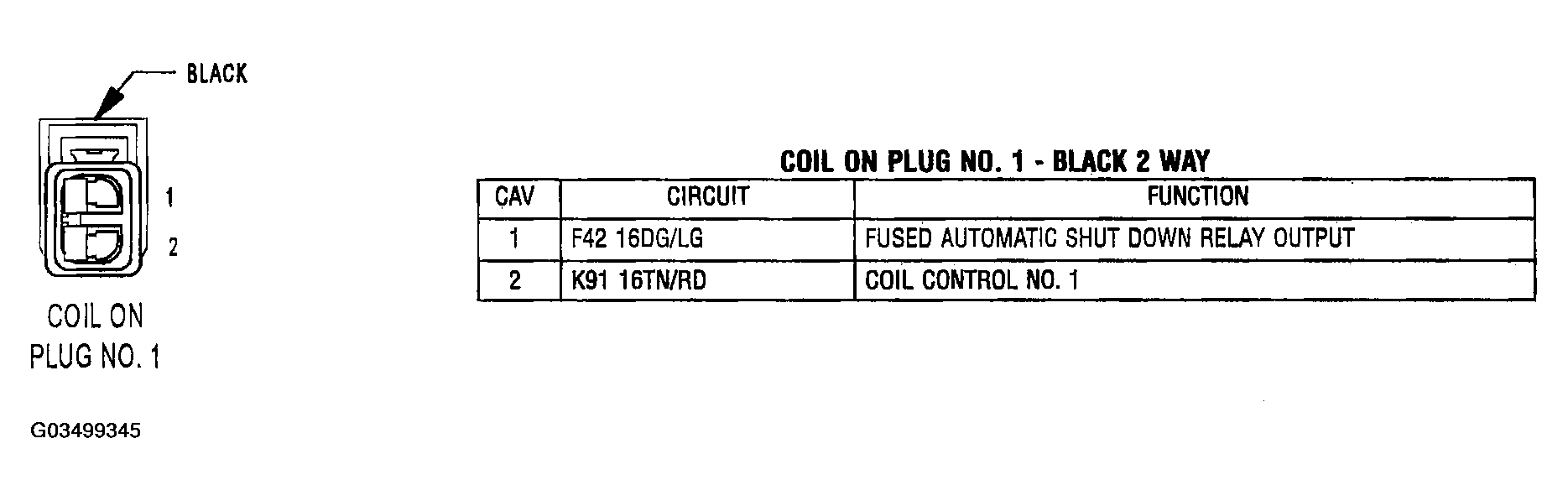

Fig 1: Identifying Coil On Plug No. 1 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
