Coil On Plug No. 6
Coil On Plug No. 6

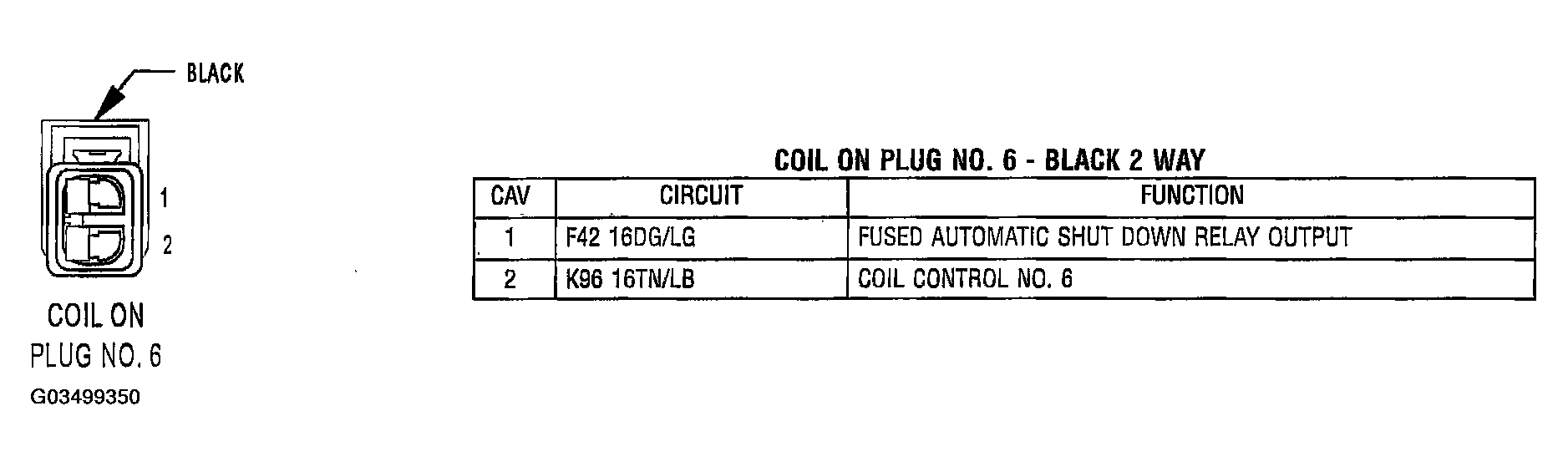

Fig 1: Identifying Coil On Plug No. 6 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
