Fuel Injector No. 1
Fuel Injector No. 1

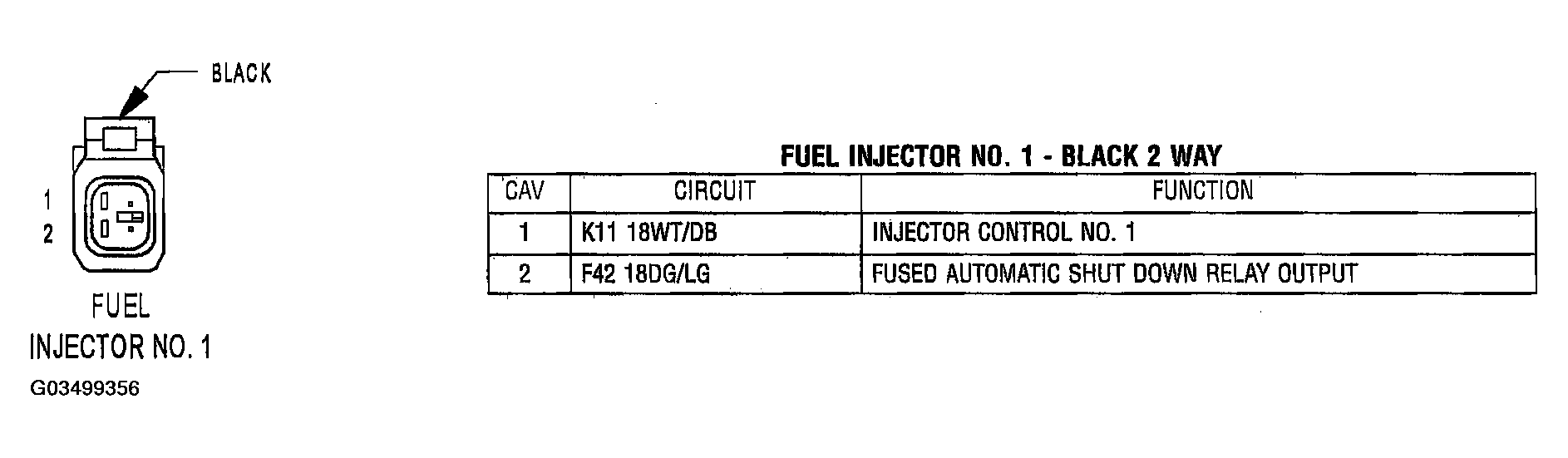

Fig 1: Identifying Fuel Injector No. 1 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
