Manifold Absolute Pressure Sensor

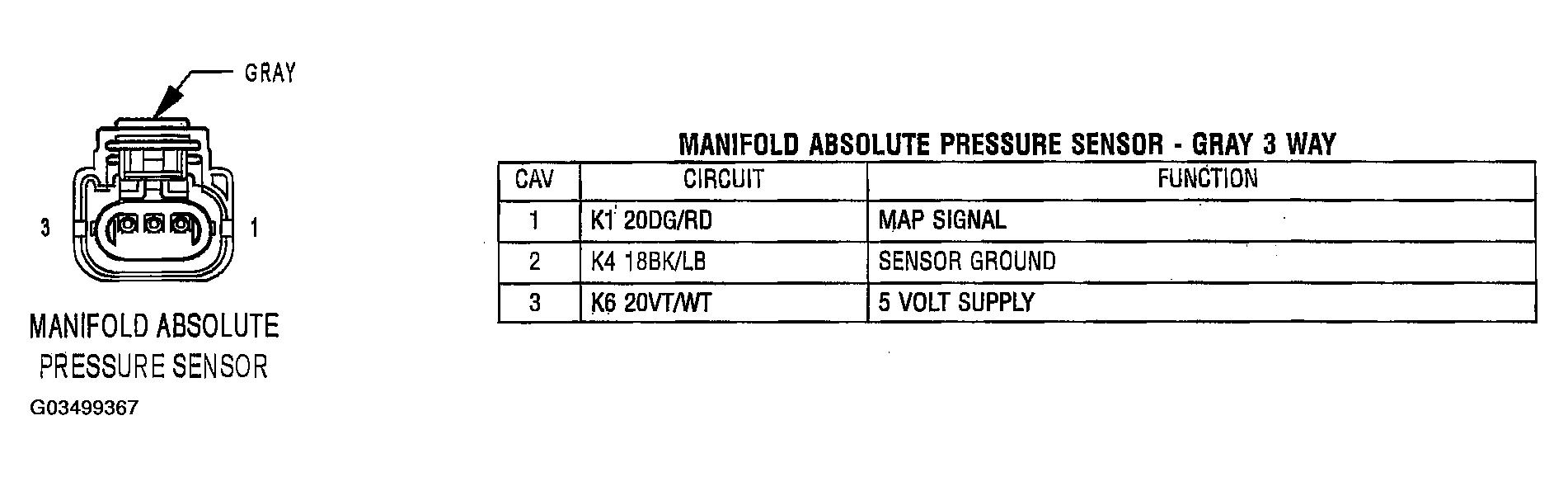

Fig 1: Identifying Manifold Absolute Pressure Sensor Connector
G03499367Courtesy of DAIMLERCHRYSLER CORP.
