Oxygen Sensor 1/1 Right Bank Up
Oxygen Sensor 1/1 Right Bank Up

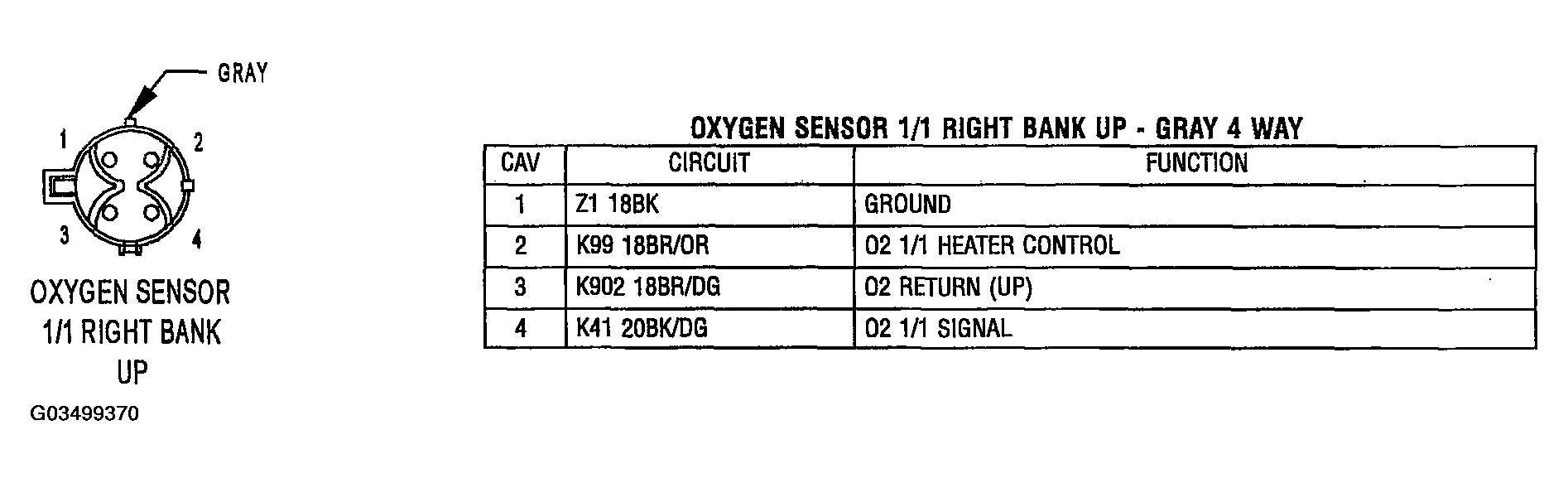

Fig 1: Identifying Oxygen Sensor 1/1 Right Bank Up - Gray 4 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
