Speed Control Servo
Speed Control Servo

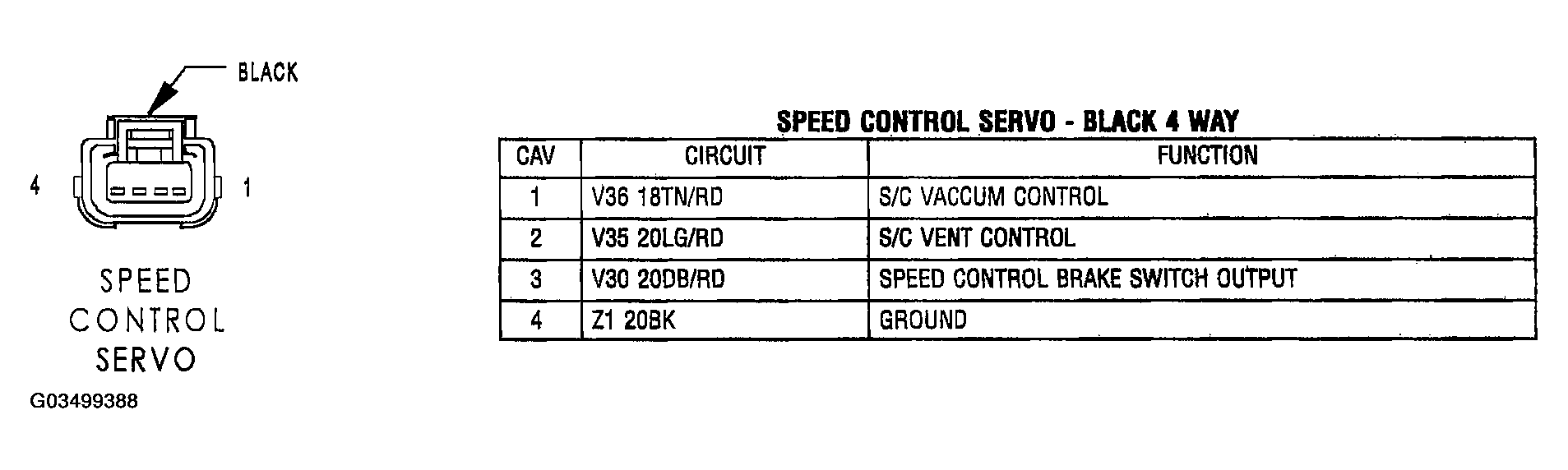

Fig 1: Identifying Speed Control Servo Connector
Courtesy of DAIMLERCHRYSLER CORP.
