Throttle Position Sensor (3.5L)

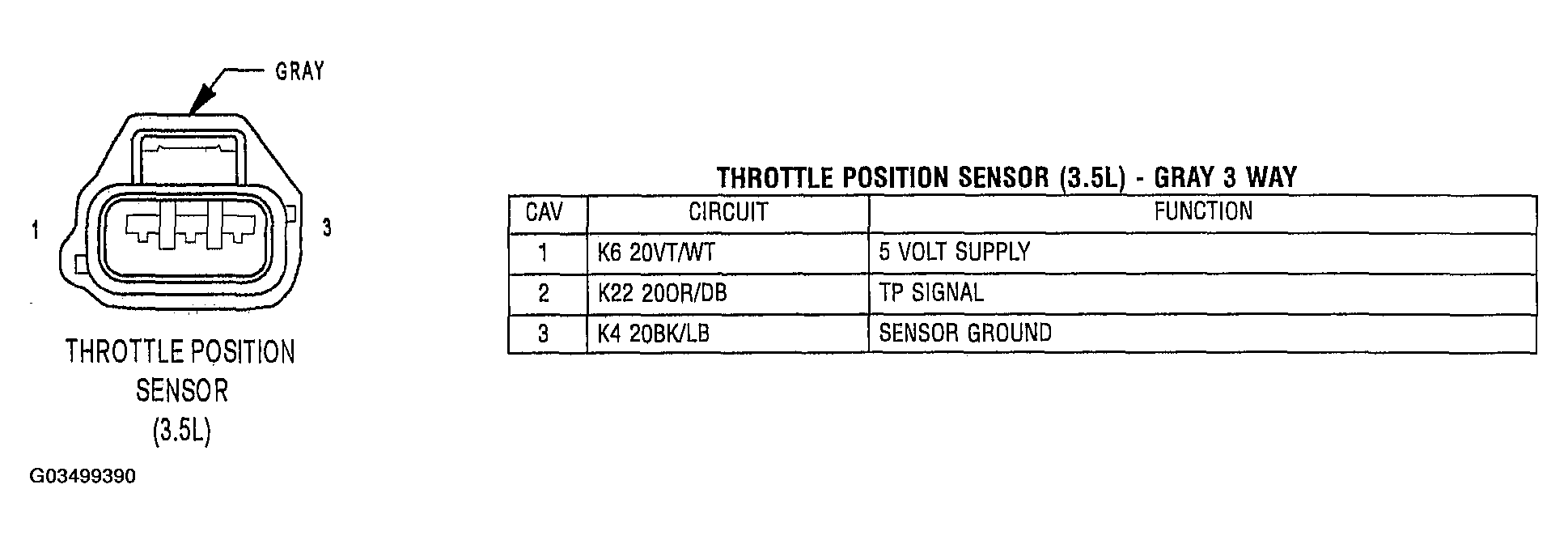

Fig 1: Identifying Throttle Position Sensor (3.5L) Connector
G03499390Courtesy of DAIMLERCHRYSLER CORP.
