Oxygen Sensor 2/2 Left Bank Down Connector End View
Oxygen Sensor 2/2 Left Bank Down Connector End View

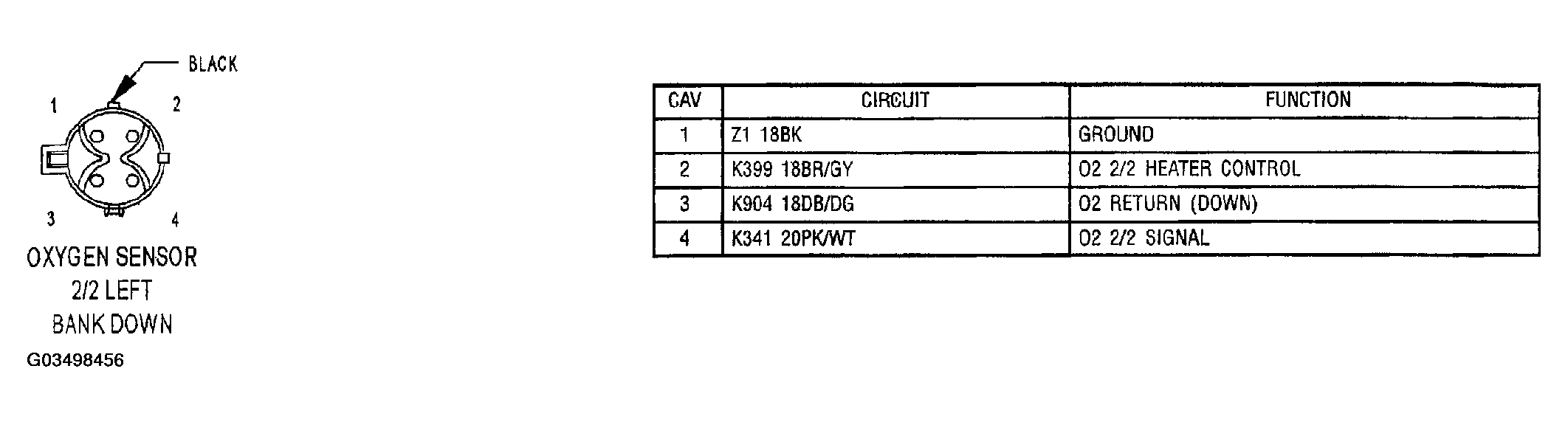

Fig 1: Left Bank Down Oxygen Sensor 2/2 Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
