Power Amplifier C1 Connector End View
Power Amplifier C1 Connector End View

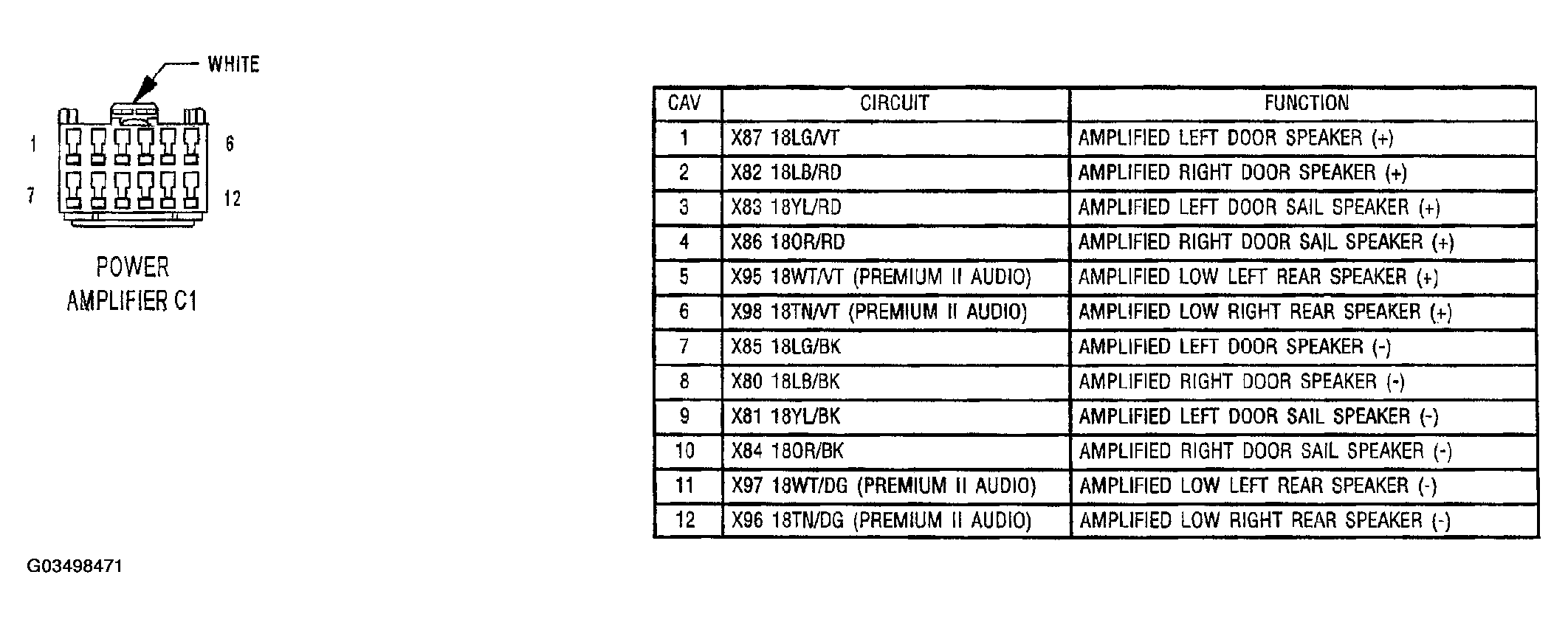

Fig 1: Power Amplifier Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
