Powertrain Control Module C2 Connector End View

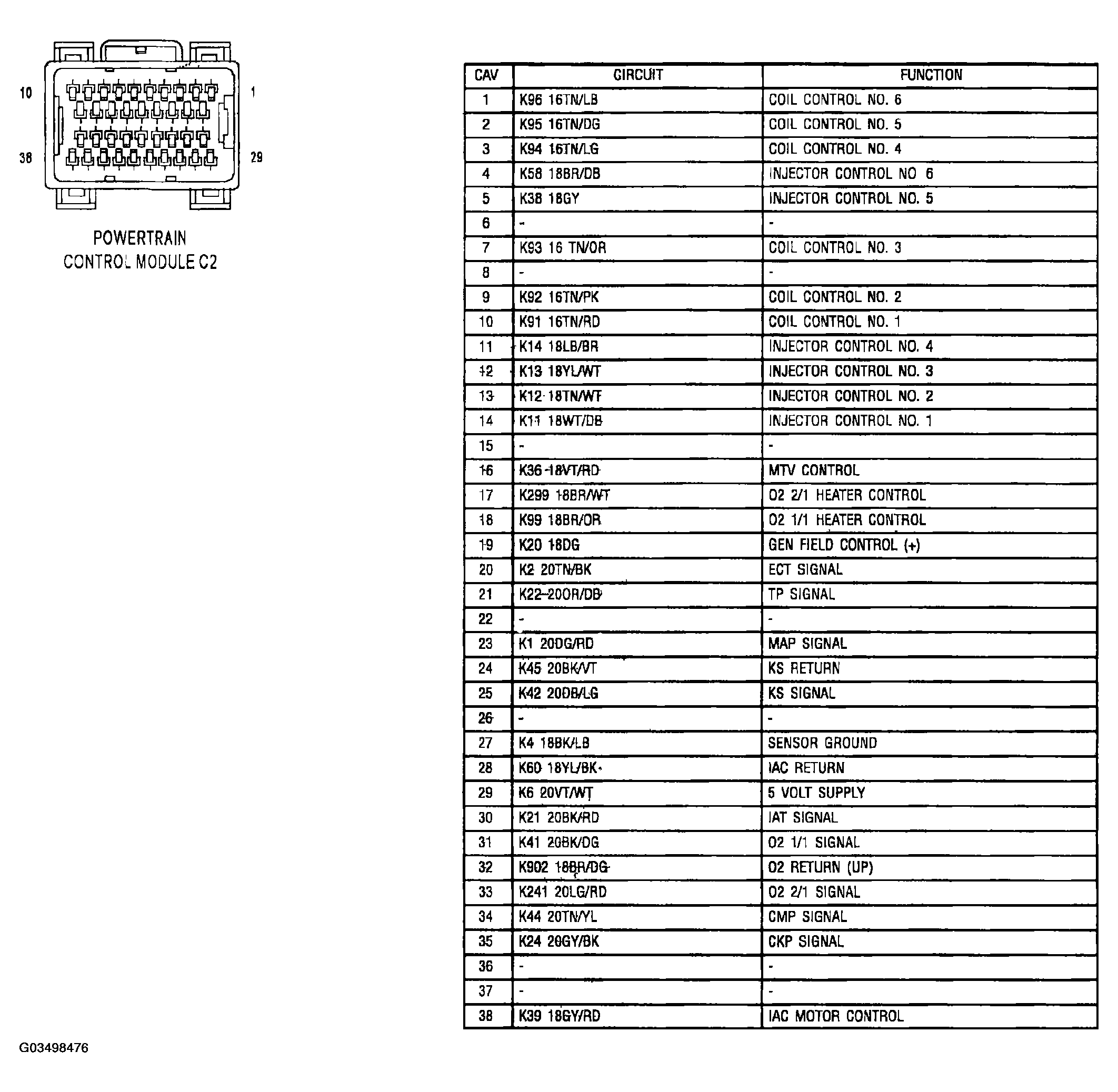

Fig 1: Powertrain Control Module Connector End View (C2)
G03498476Courtesy of DAIMLERCHRYSLER CORP.
