Input Speed Sensor: Installation

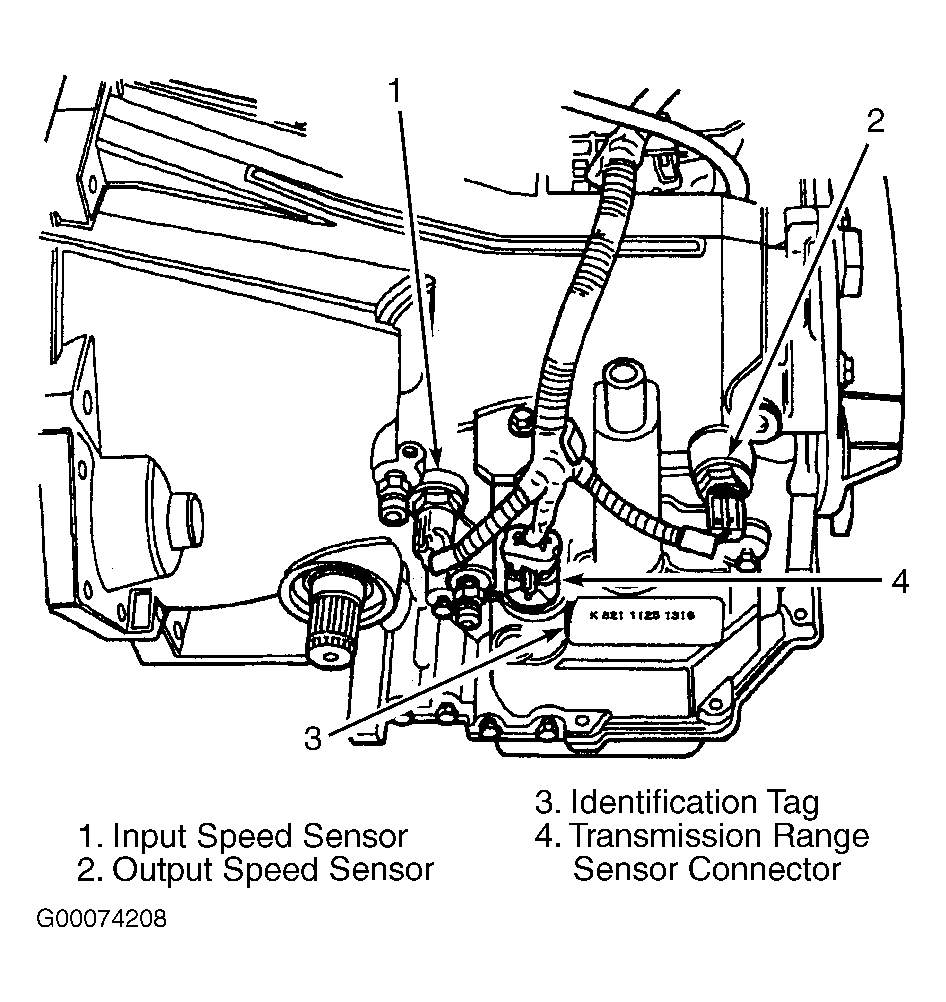

  1. Verify o-ring is installed into position. See Figure .
  2. Install and tighten input speed sensor to 20 ft. lbs. (27 N.m).
  3. Connect speed sensor connector. See Figure
  4. Connect battery negative cable.
