Transmission Range Sensor: Installation

  1. Install the TRS to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.

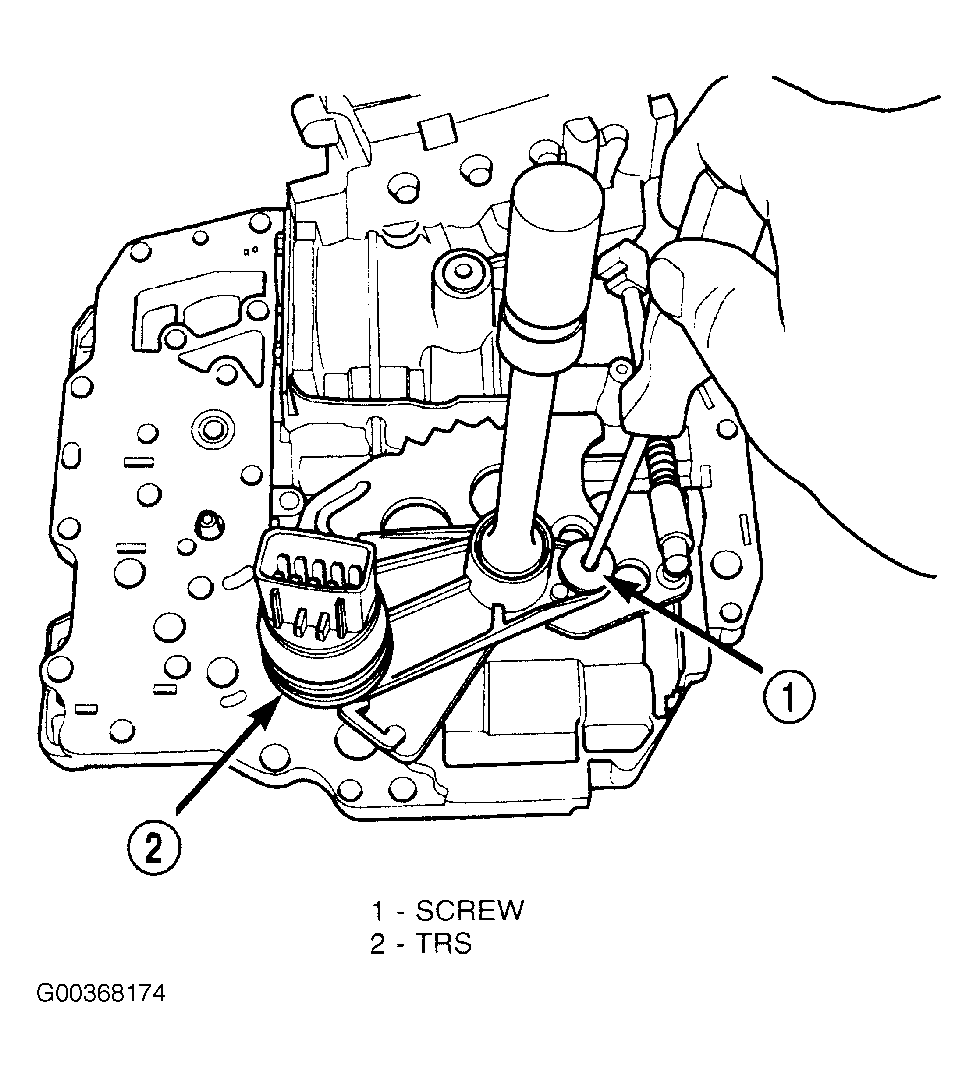

  2. Install the TRS/manual shaft retaining screw and torque to 45 INCH Lbs. (5 N.m). See Figure .

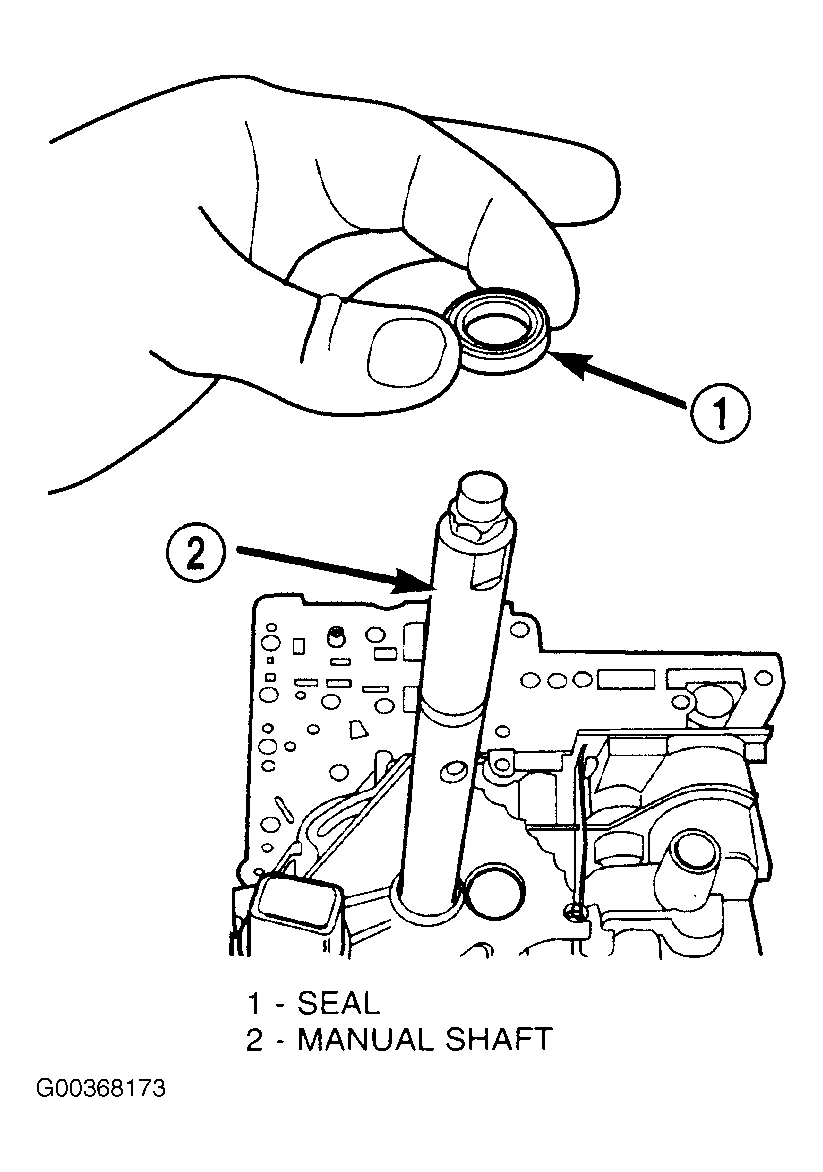

  3. Install the manual shaft seal. See Figure .
  4. Install valve body to transaxle.
