Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Data Link Connector Connector End View
Data Link Connector Connector End View

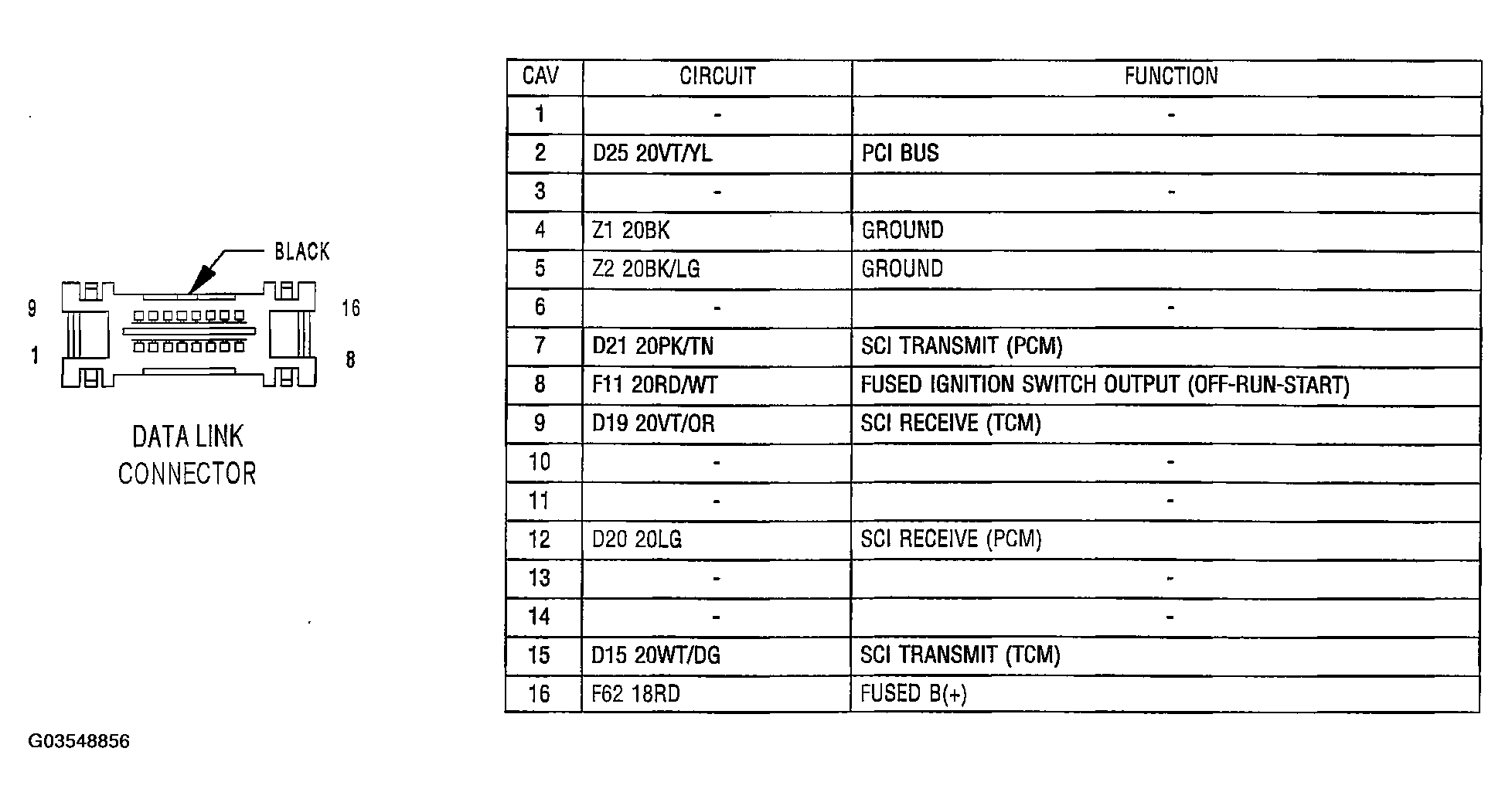

Fig 1: Identifying Data Link Connector Terminals And Specification (Black 16 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
