Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Transmission Range Sensor Connector End View
Transmission Range Sensor Connector End View

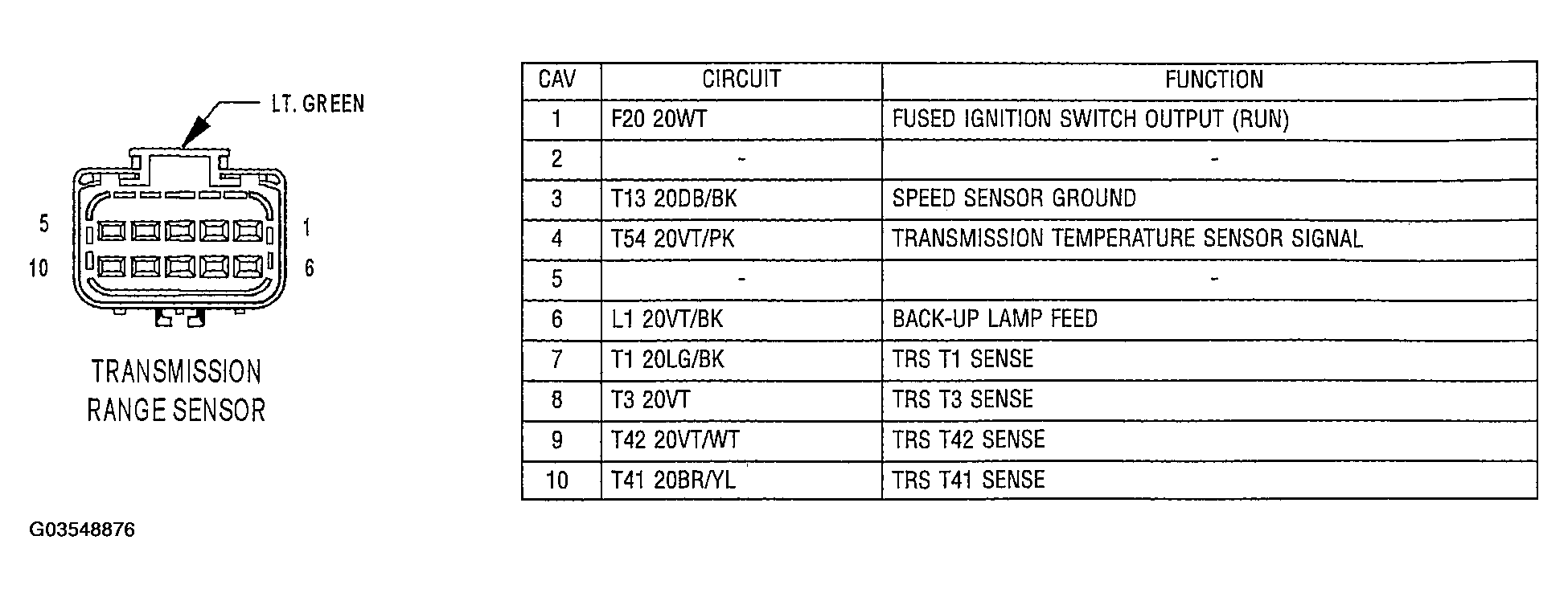

Fig 1: Identifying Transmission Range Sensor Connector Terminals And Specification (LT. Green 10 Way)
Courtesy of DAIMLERCHRYSLER CORP.
