Transmission Solenoid/Pressure Switch Assembly Connector End View

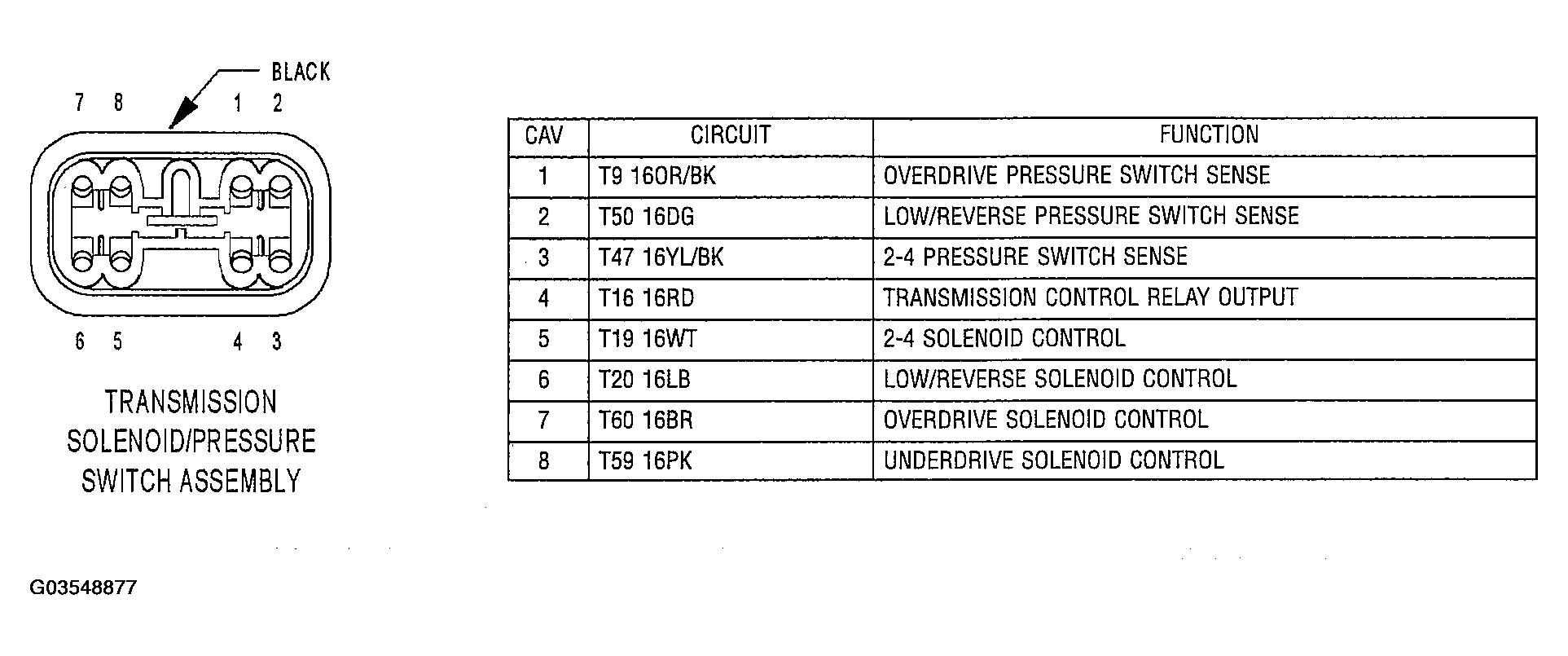

Fig 1: Identifying Transmission Solenoid/Pressure Switch Assembly Connector Terminals And Specification (Black 8 Way)

Courtesy of DAIMLERCHRYSLER CORP.
