Power Door Locks: Notes

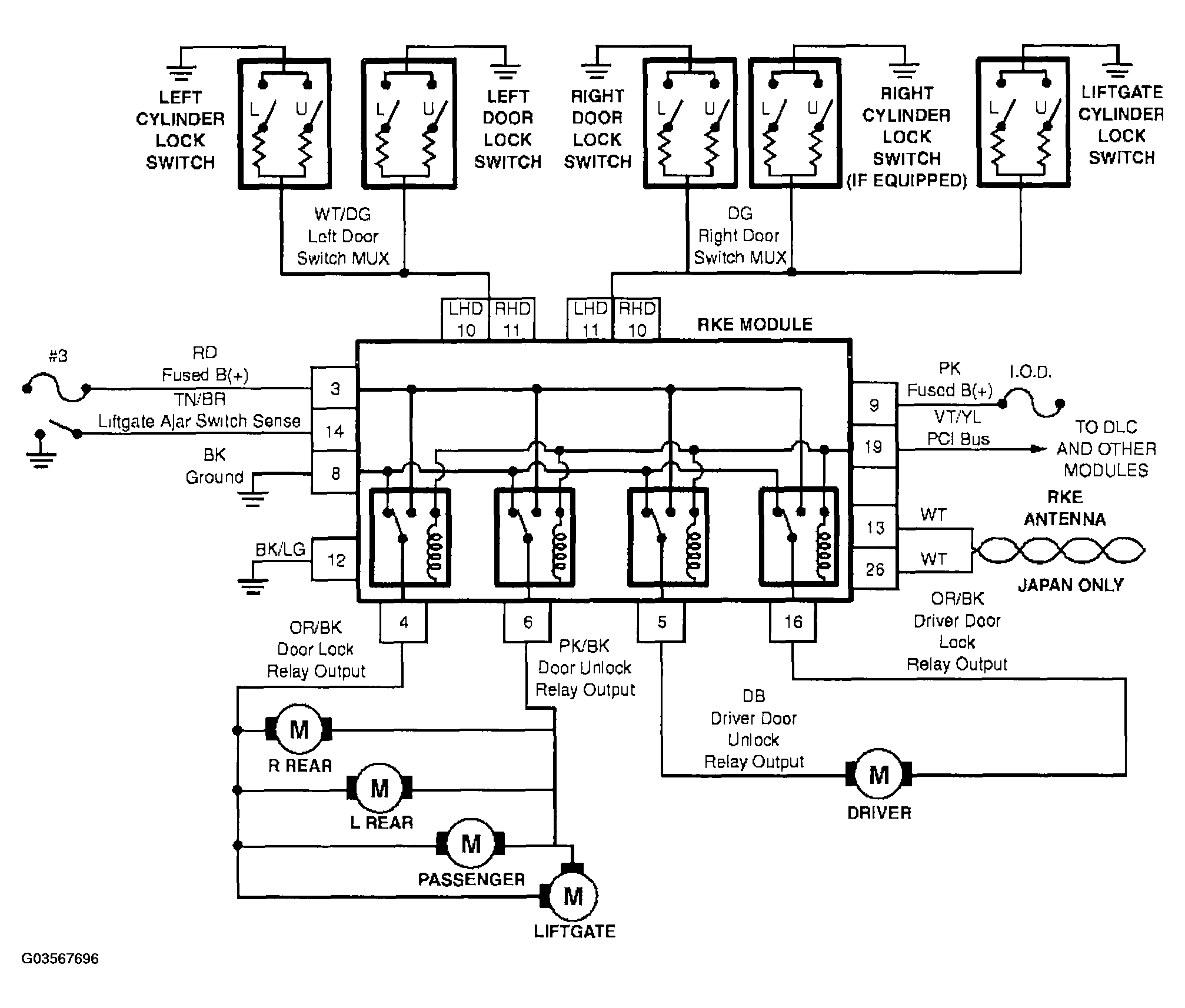

Fig 1: View Of Power Door Locks Schematic Diagram
G03567696Courtesy of DAIMLERCHRYSLER CORP.
