Telecommunications - Hands Free Module (HFM)
Telecommunications - Hands Free Module (HFM)

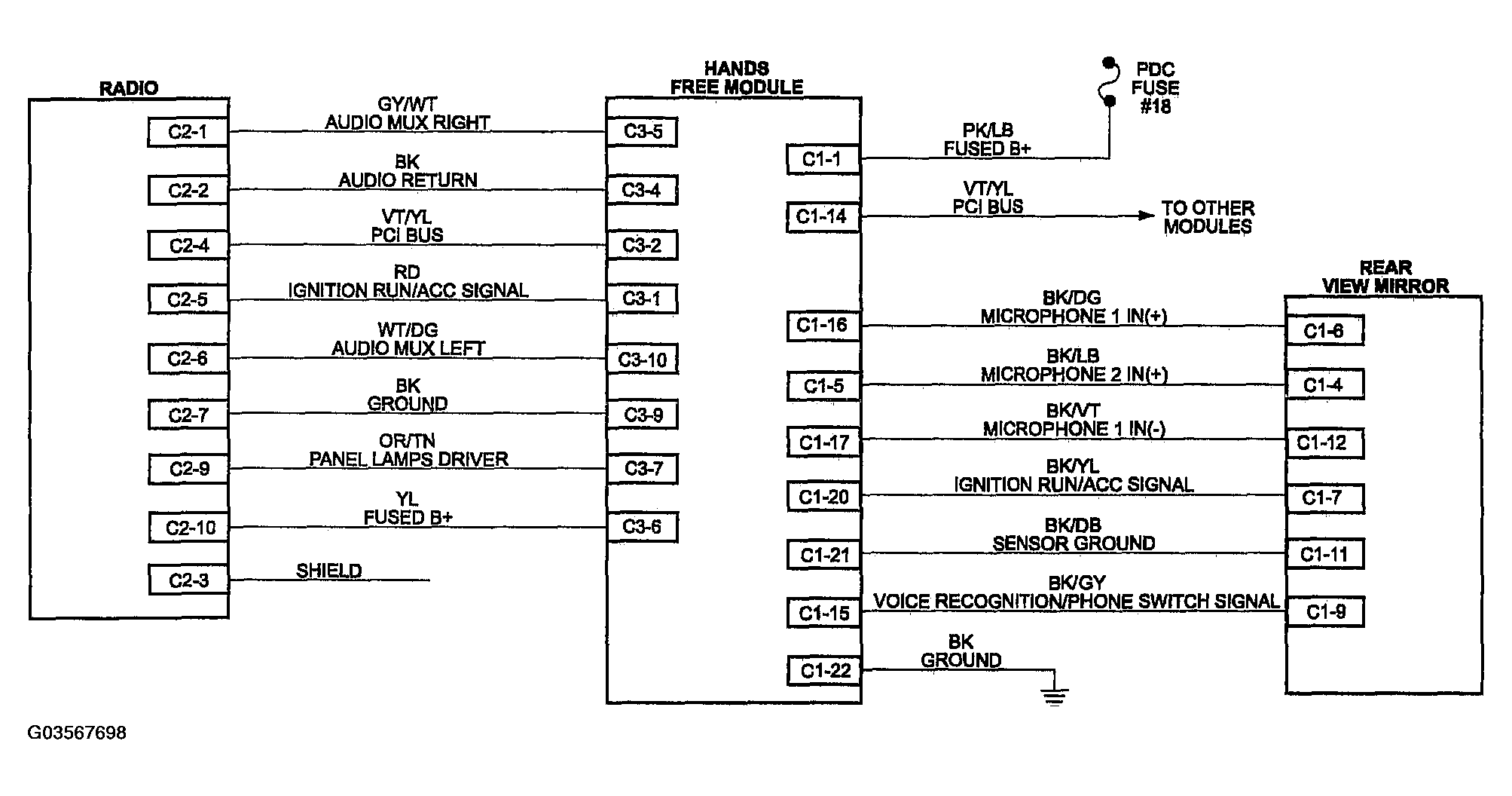

Fig 1: View Of Telecommunications - Hands Free Module (HFM) Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
