Liftgate Lock Motor: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove liftgate trim panel.
  3. Disconnect motor wire harness connector.
  4. Remove liftgate lock motor from liftgate by gently unsnapping.

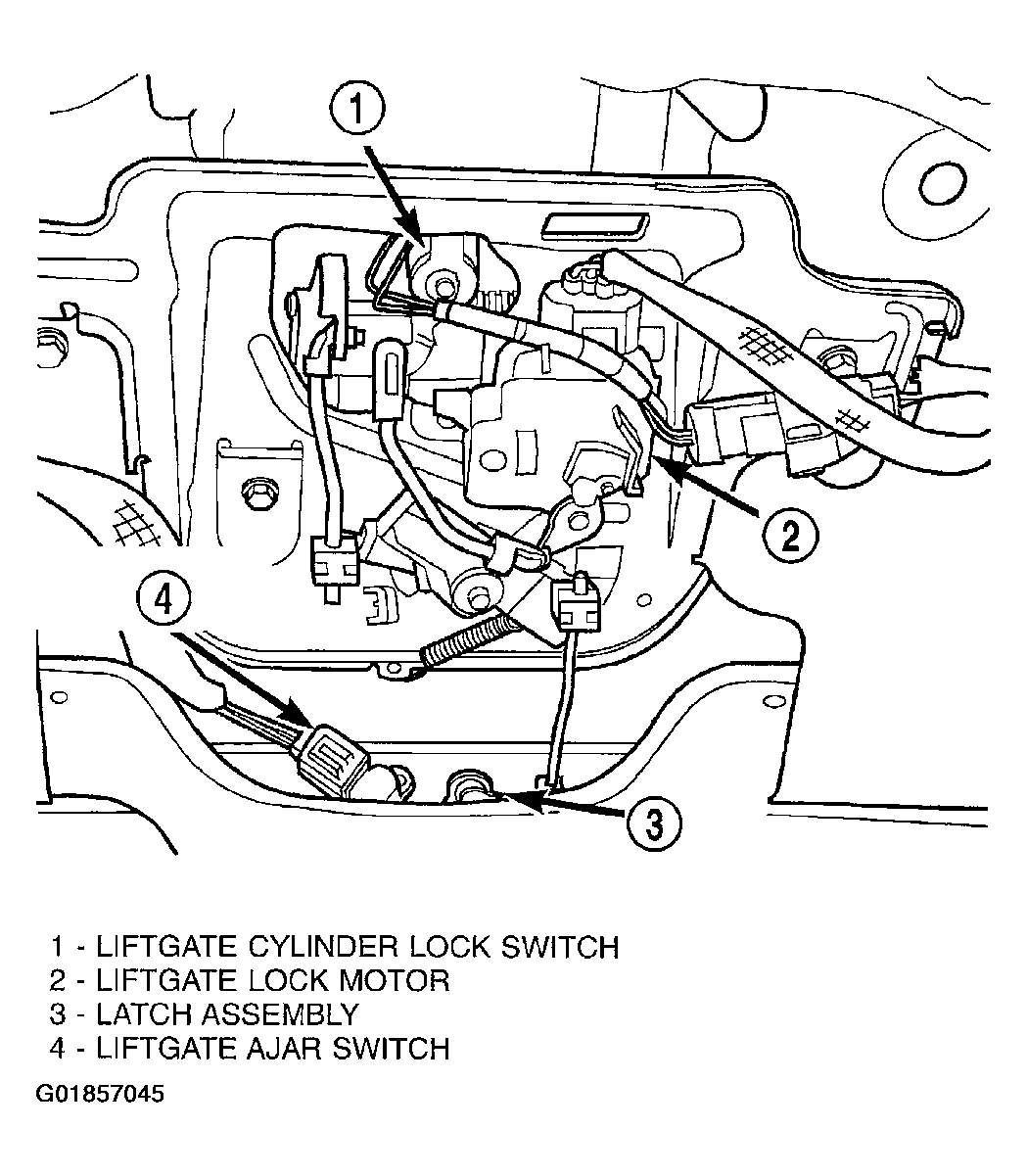

    Fig 1: Removing Liftgate Lock Motor
    G01857045Courtesy of DAIMLERCHRYSLER CORP.
