Assembly - ICU

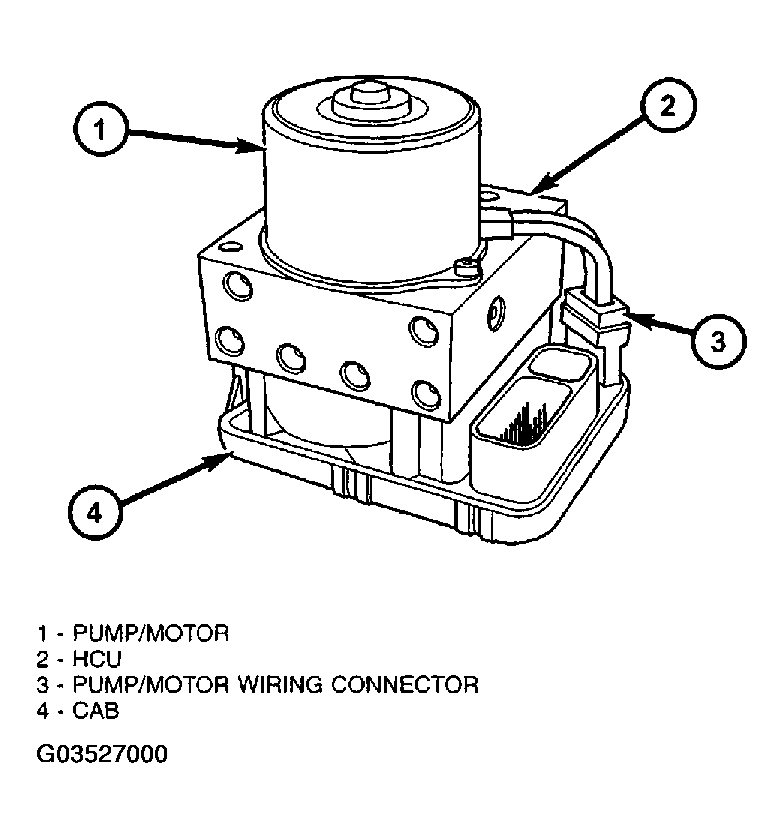

  1. Install the CAB on the HCU (Fig 1 ).
  2. Install the 4 bolts mounting the CAB to the HCU (Figure ). Tighten the CAB mounting bolts to a torque of 2 N.m (17 in. lbs.).
  3. Plug the pump/motor wiring harness into the CAB (Figure ).
  4. Install the ICU in the vehicle. (Refer to INSTALLATION  ).

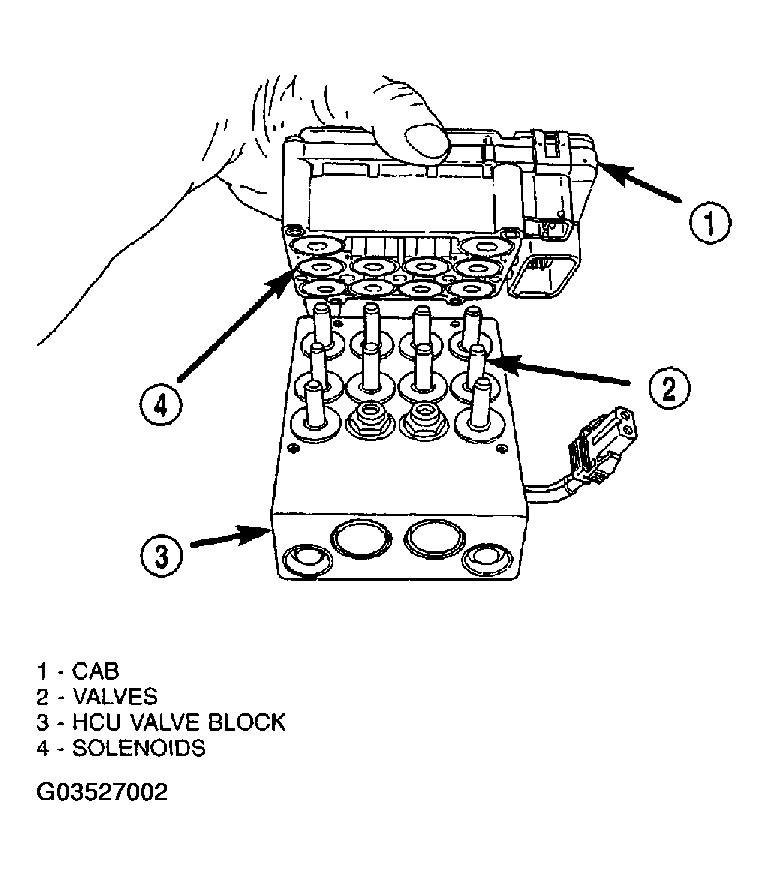

    Fig 1: Identifying Cab And Valves
    G03527002Courtesy of DAIMLERCHRYSLER CORP.
