AUTOSTICK Switch Connector End View

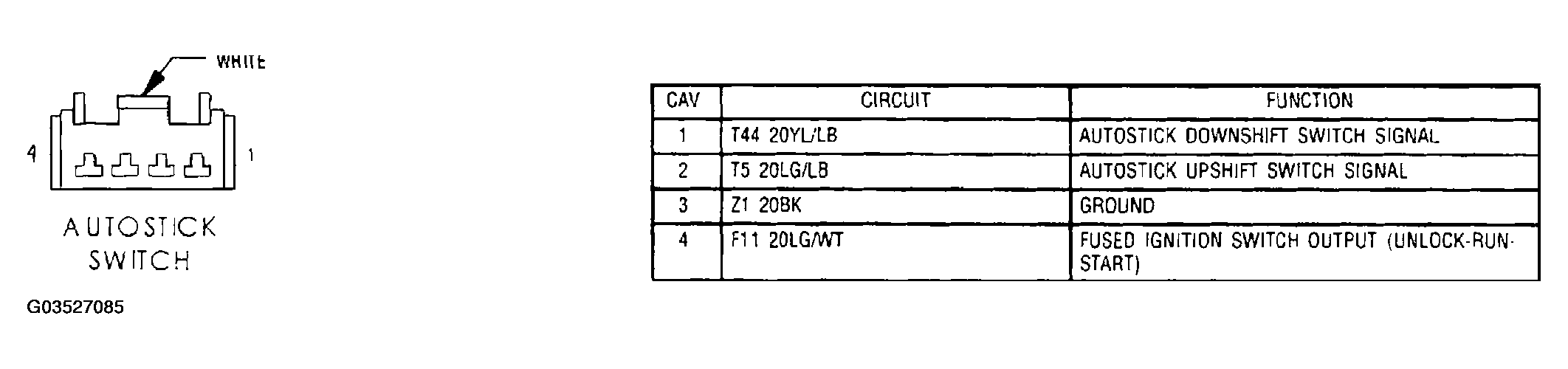

Fig 1: Autostick Switch Connector End View
G03527085Courtesy of DAIMLERCHRYSLER CORP.
