Airbag Control Module C2 (Orc) (Premium) Connector End View
Airbag Control Module C2 (Orc) (Premium) Connector End View

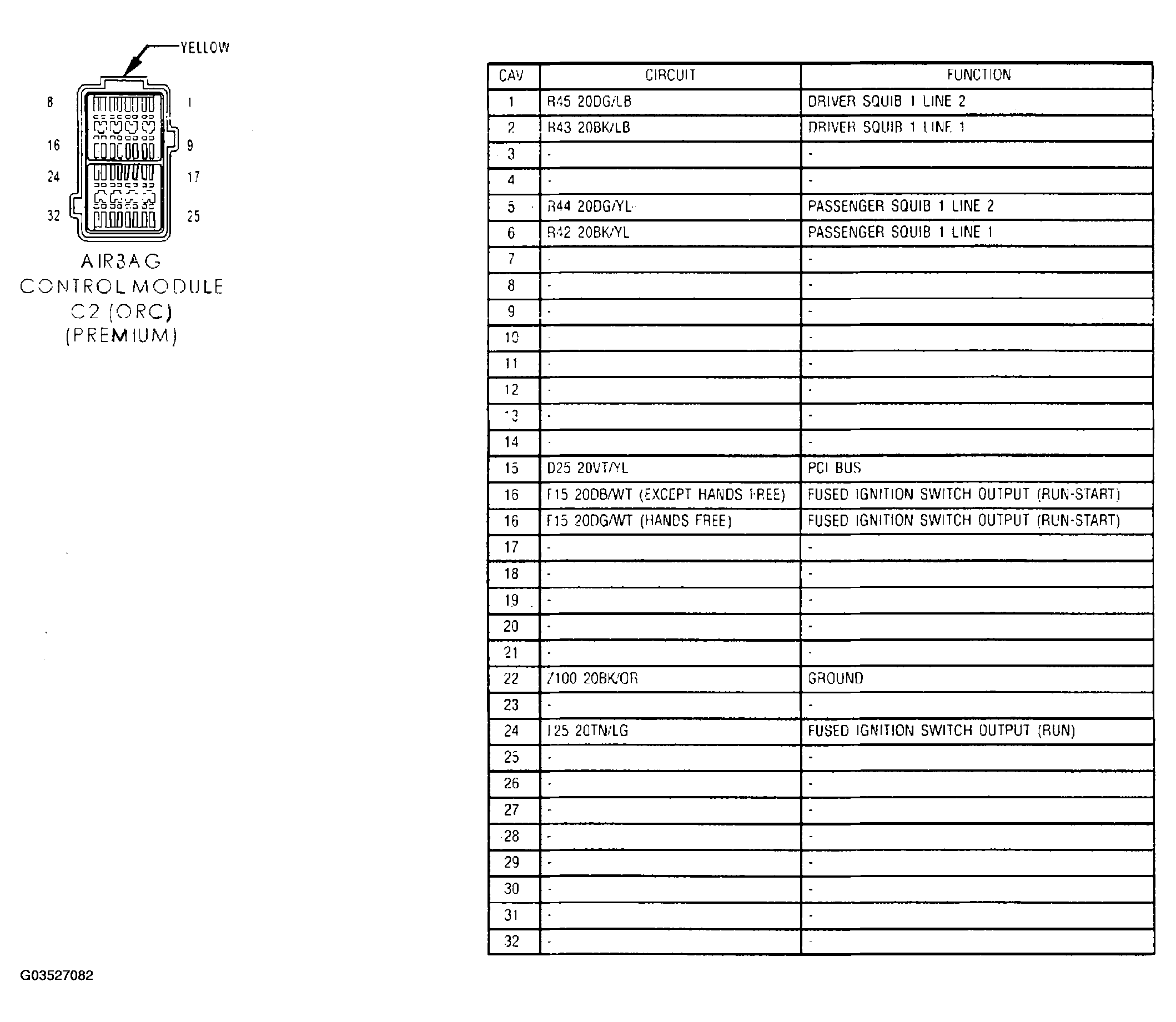

Fig 1: ORC Airbag Control Module (Premium) Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
