Power Seat Switch Connector End View
Power Seat Switch Connector End View

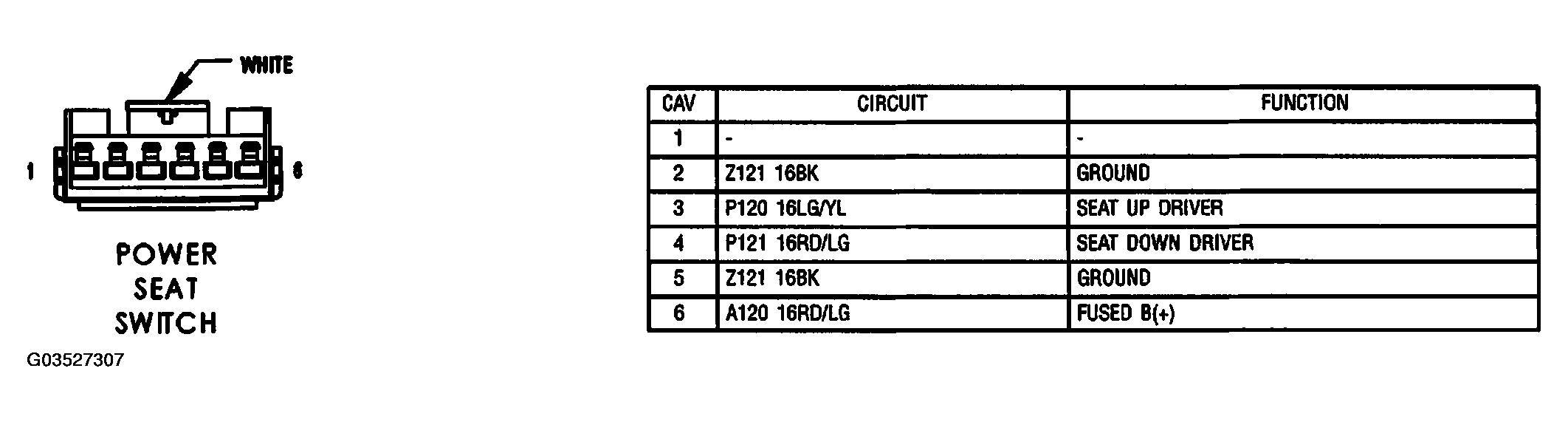

Fig 1: Power Seat Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
