Power Distribution: Relay: Removal

Disconnect and isolate the battery negative cable.
Remove cover from Power Distribution Center (PDC).
Using special tool C-4817, grip the relay by the sides and pull upward with an even effort (Fig 1 ).

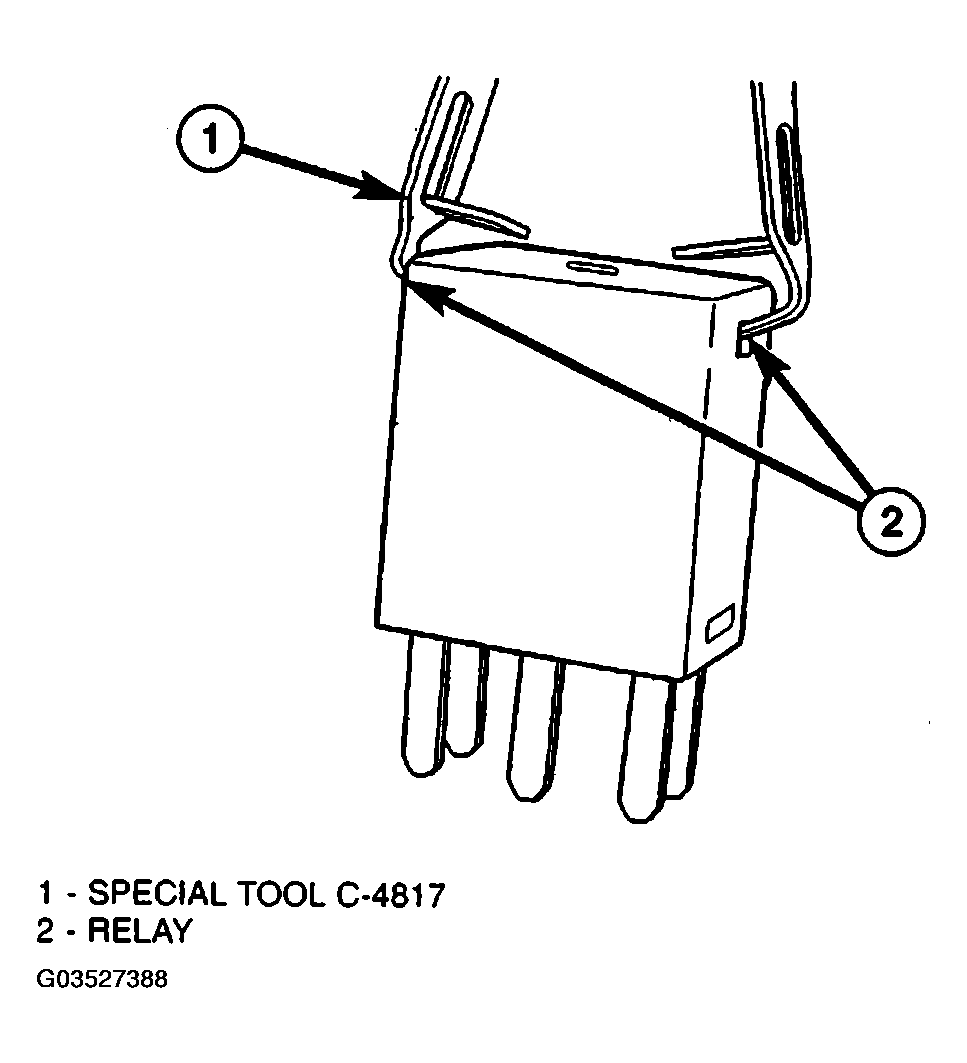

Fig 1: Identifying Relay
Courtesy of DAIMLERCHRYSLER CORP.
