Home › Chrysler › 2004 › PT Cruiser Base, Automatic › Repair and Diagnosis › Electrical › Charging Systems › Charging System & Starting System › Charging › Specifications › Torque

Charging System & Starting System: Charging: Specifications: Torque

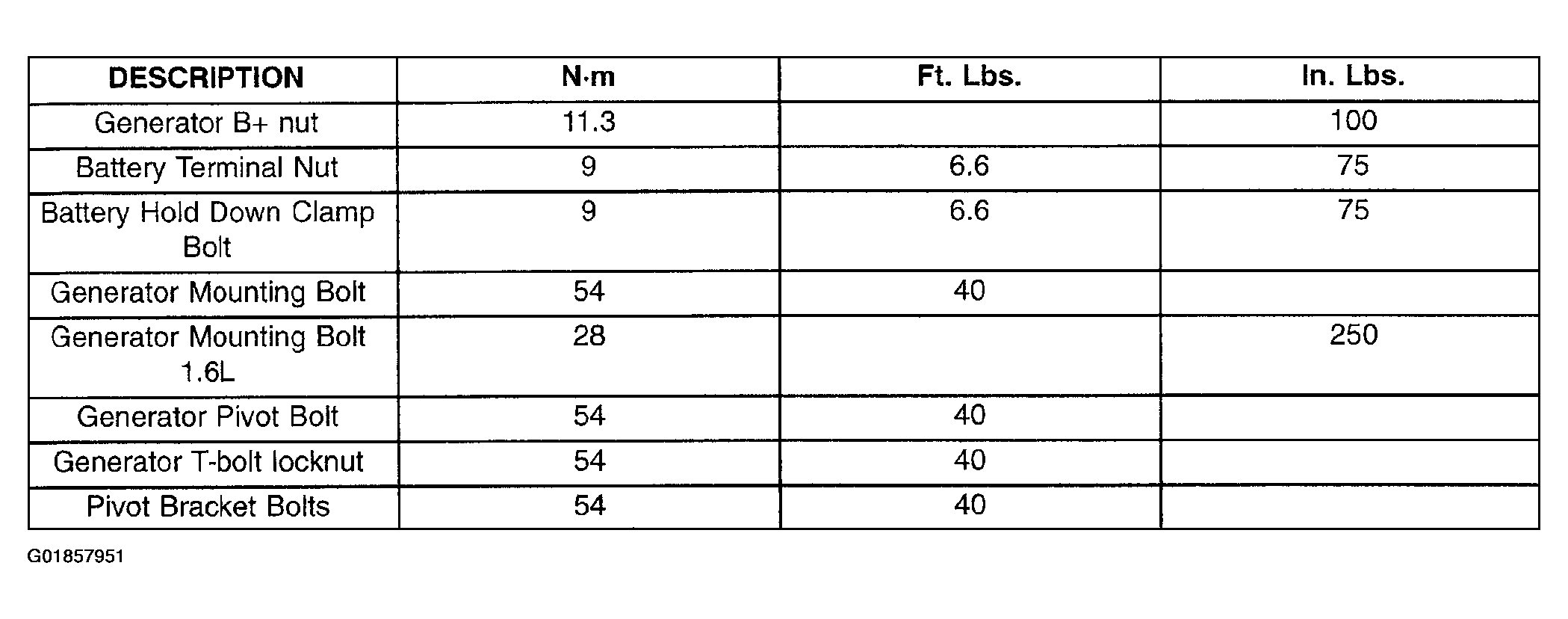

Fig 1: Fastener Tightening Torque Specifications Table
G01857951Courtesy of DAIMLERCHRYSLER CORP.
