CLOCKSPRING Connector End View
CLOCKSPRING Connector End View

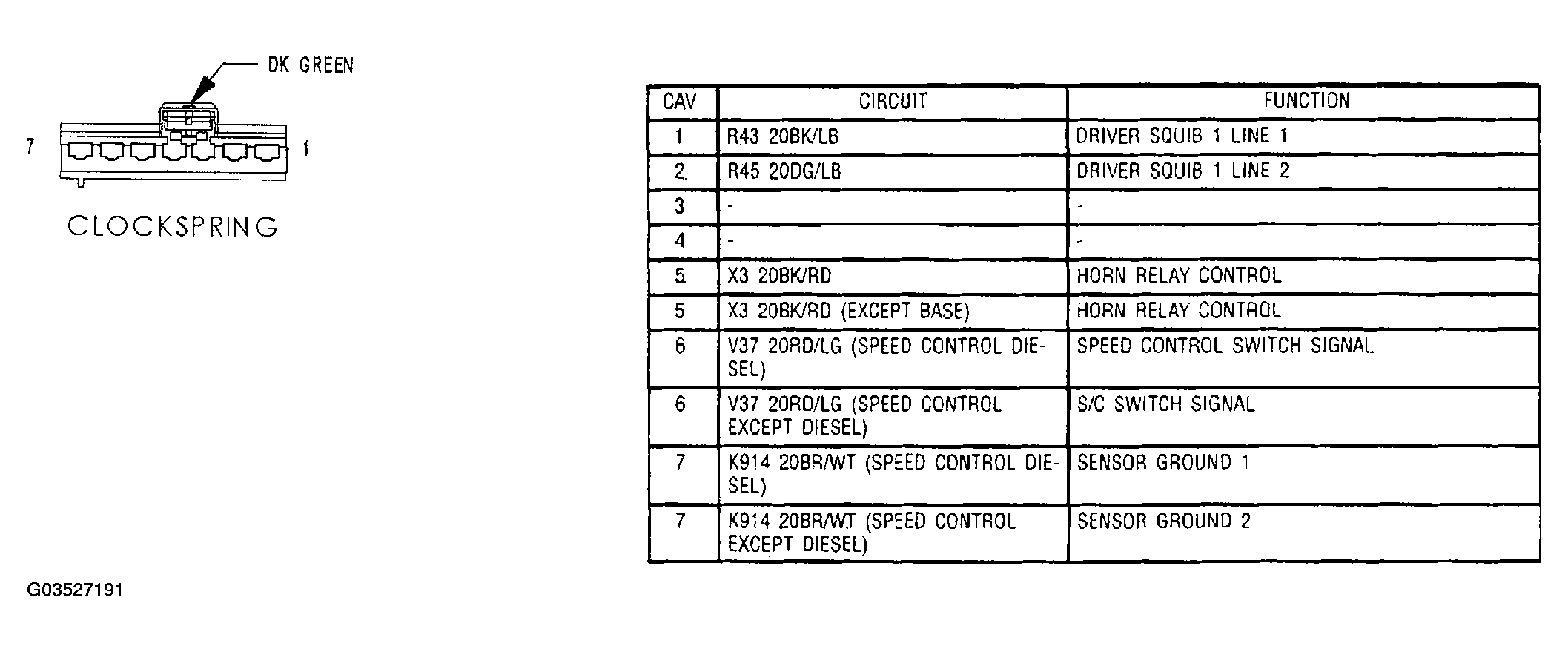

Fig 1: Clockspring Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
