Liftgate Cylinder Lock Switch Connector End View
Liftgate Cylinder Lock Switch Connector End View

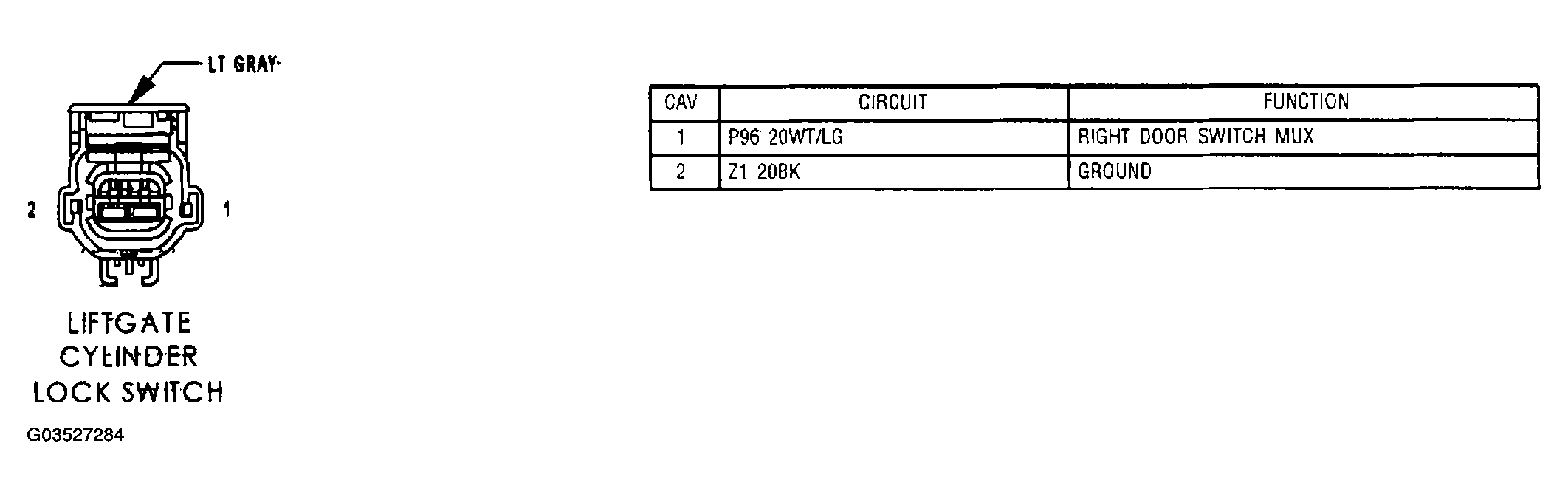

Fig 1: Liftgate Cylinder Lock Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
