Map Sensor: Description

The MAP sensor mounts to the intake manifold.

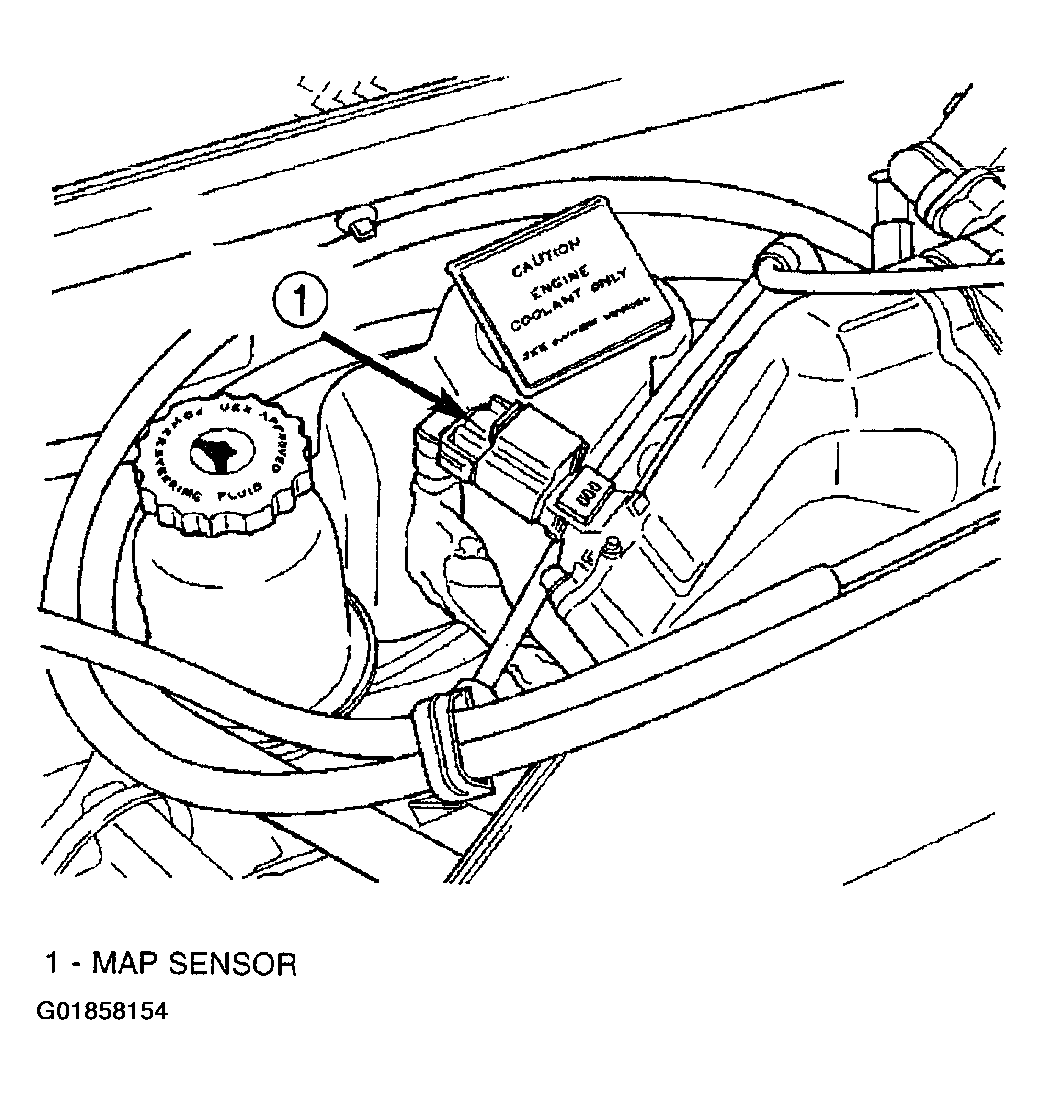

Fig 1: Locating MAP Sensor
G01858154Courtesy of DAIMLERCHRYSLER CORP.
