Firing Order - 2.0/2.4/2.4 Turbo

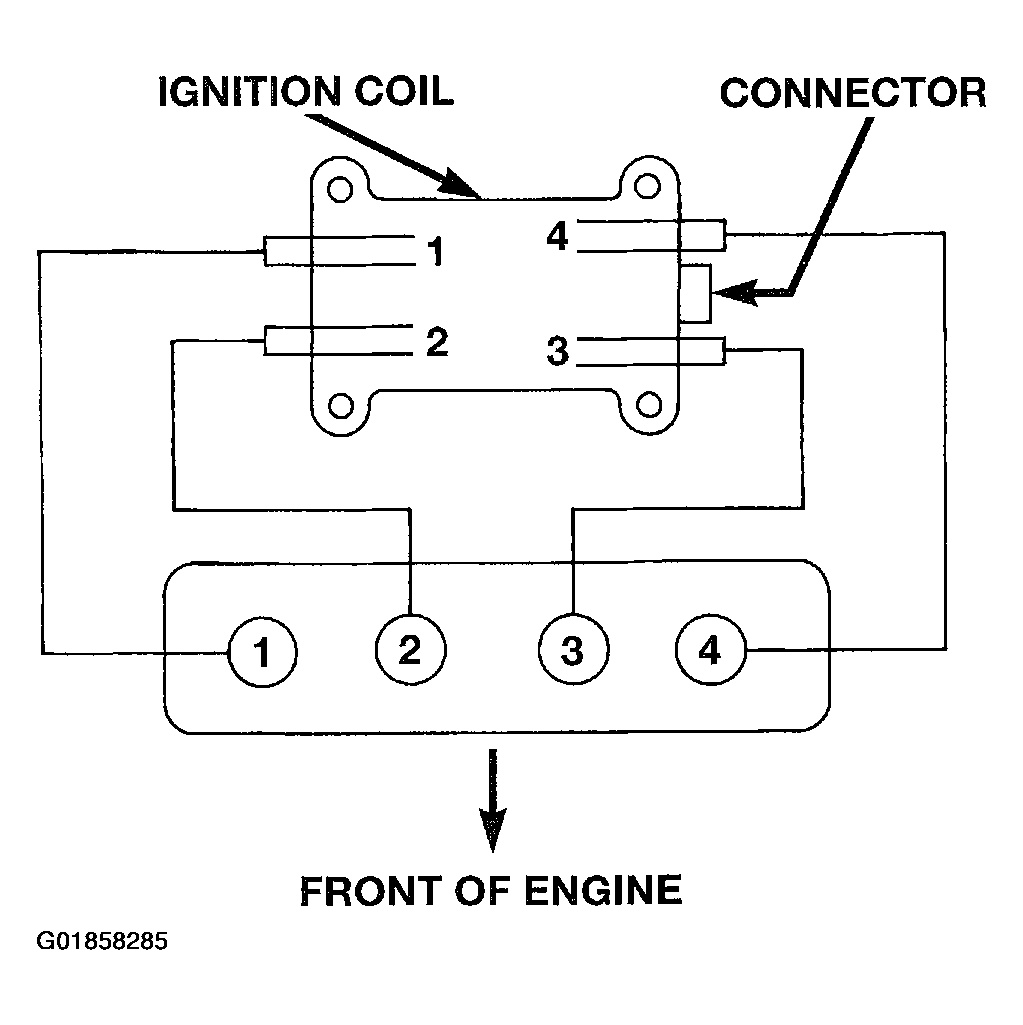

Fig 1: Identifying Firing Order - 2.0/2.4/2.4L Turbo
G01858285Courtesy of DAIMLERCHRYSLER CORP.
