Removal - 2.0/2.4/2.4 Turbo/2.4L SRT-4

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

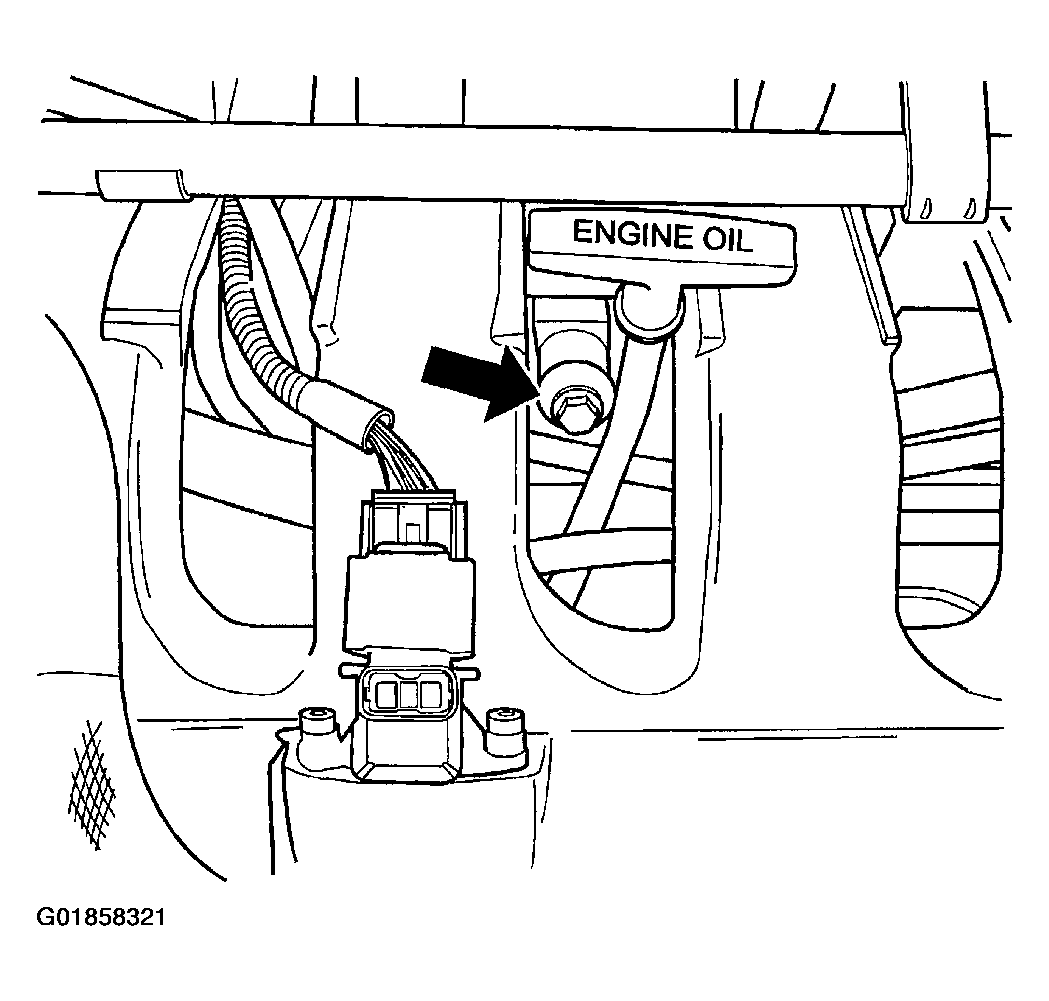

Fig 1: Locating Knock Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the negative battery cable.
2. Disconnect electrical connector from knock sensor.
   Fig 2: Removing Knock Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the bolt holding the knock sensor
4. Remove the knock sensor.
   Fig 3: Identifying Knock Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
