*No Response From Sentry Key Immobilizer Module: Testing

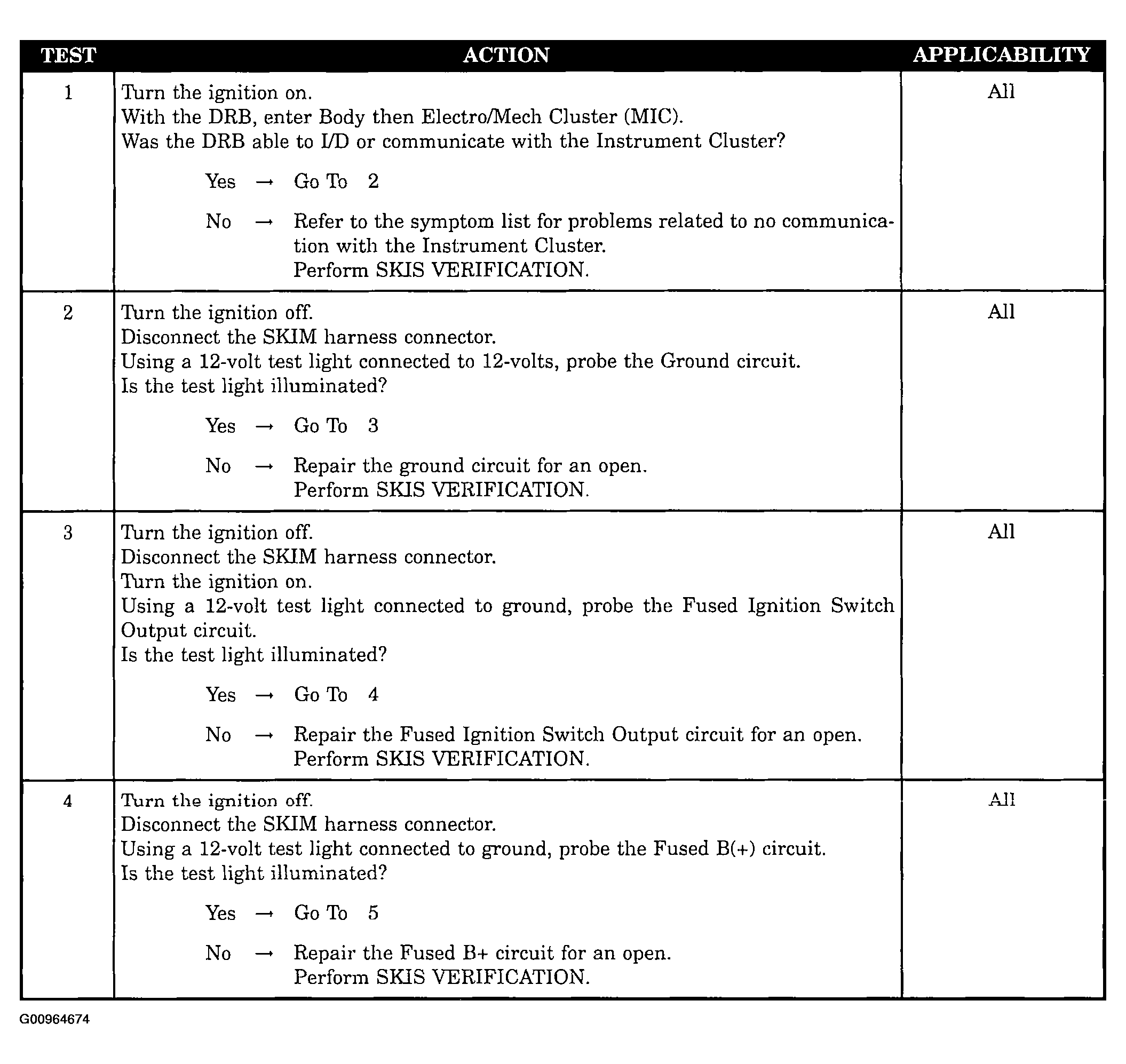

Fig 1: Testing: *No Response From Sentry Key Immobilizer Module (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

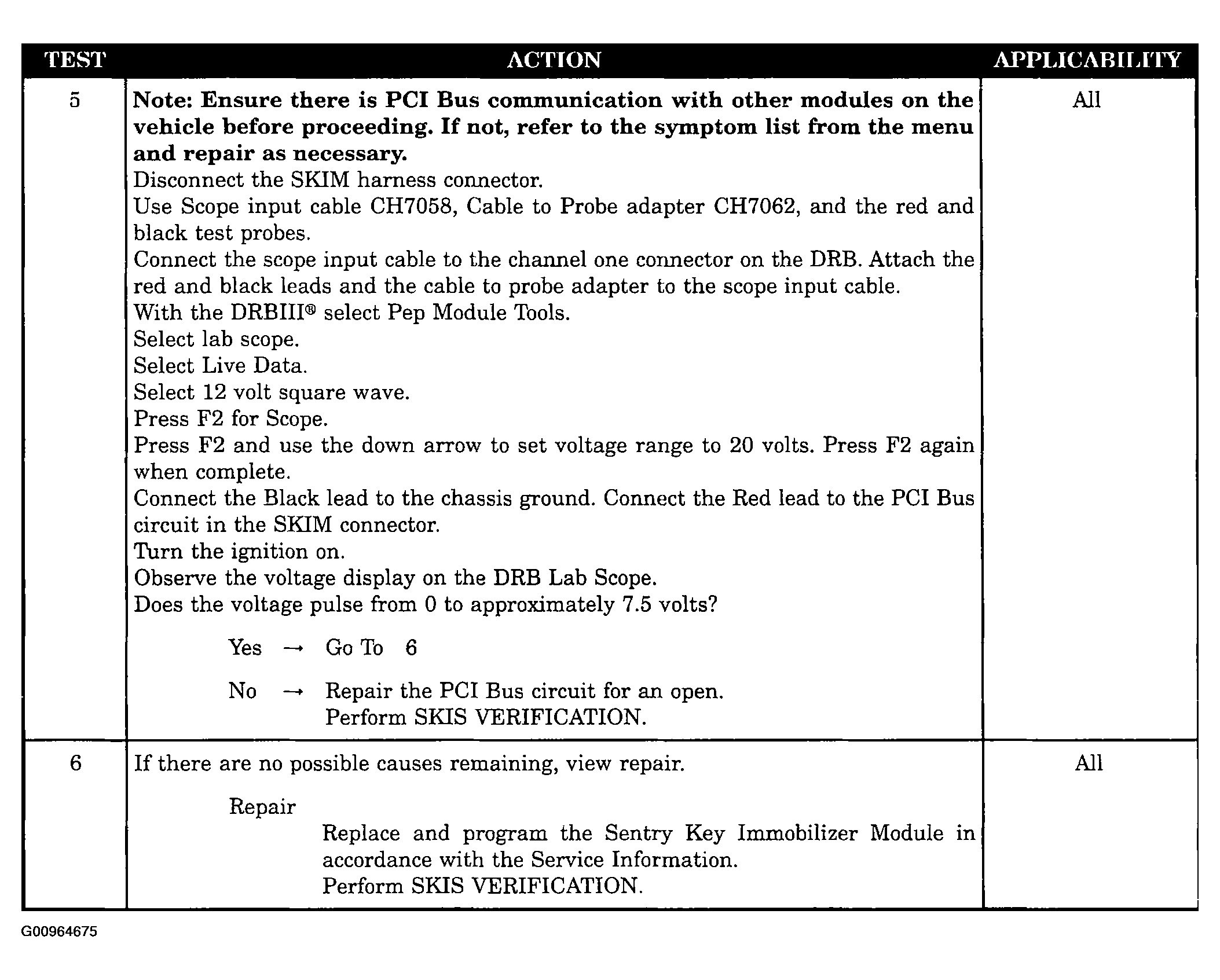

Fig 2: Testing: *No Response From Sentry Key Immobilizer Module (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
