Rolling Code Failure Or VIN Mismatch: Testing

Fig 1: Testing: Rolling Code Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

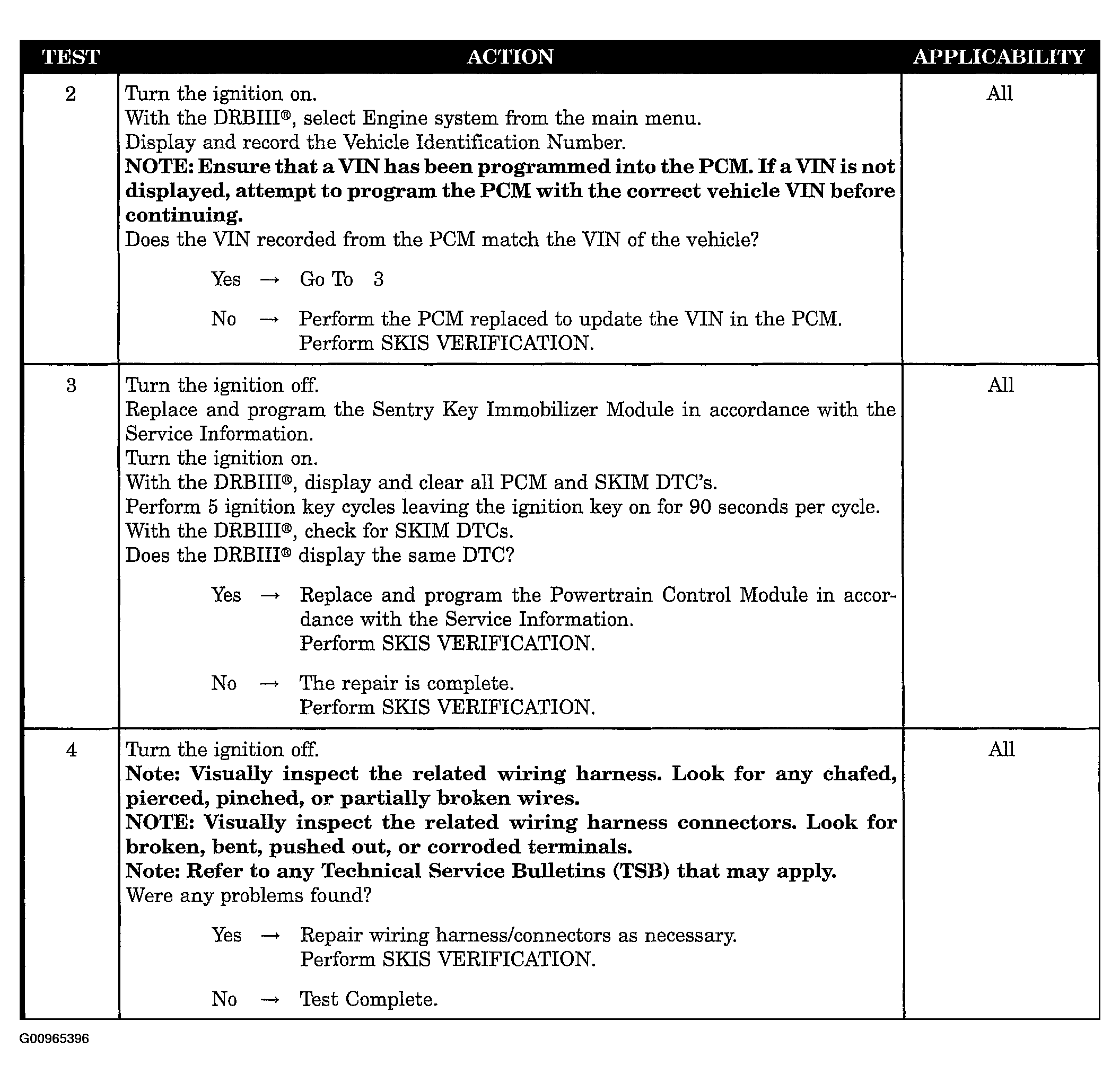

Fig 2: Testing: Rolling Code Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
