Ignition Switch: Removal

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to SYSTEM WIRING DIAGRAMS article.

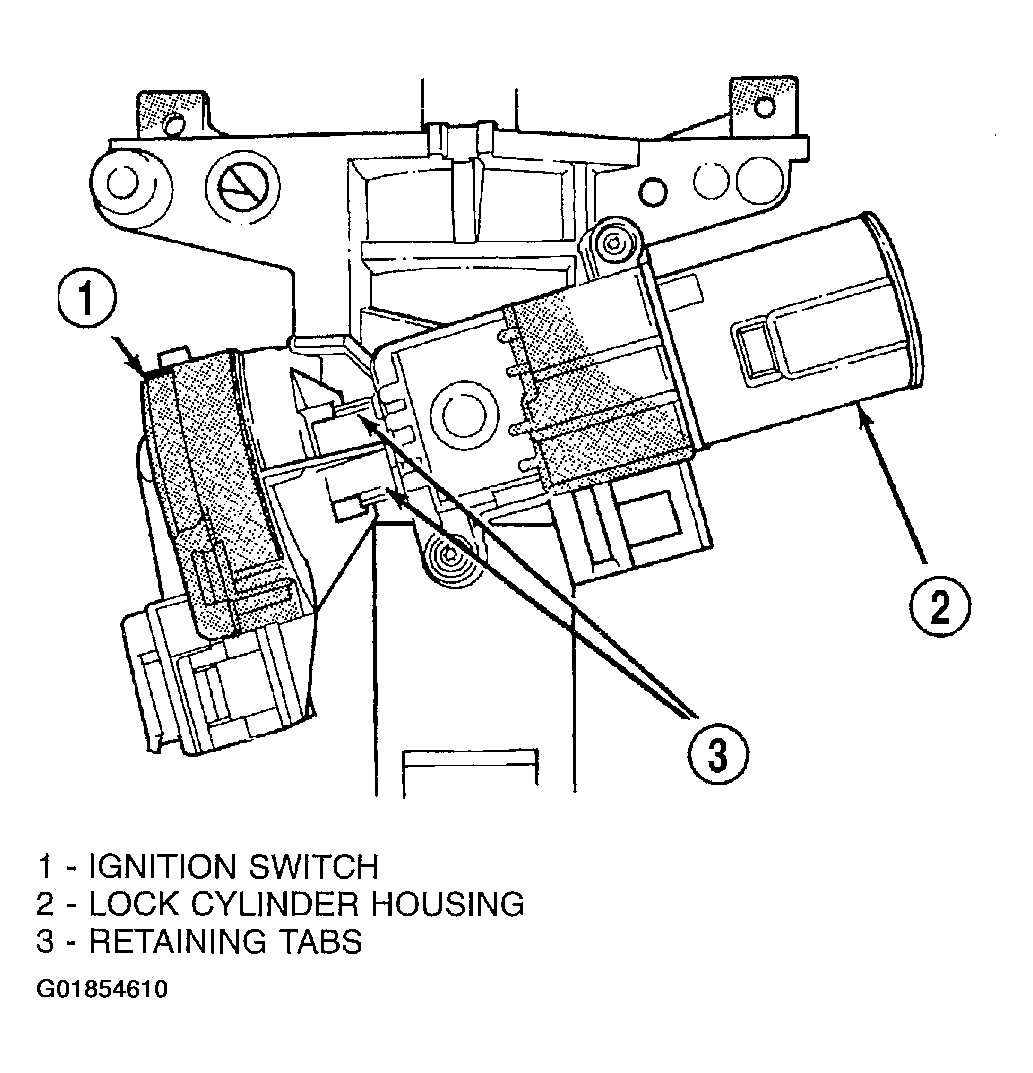

Fig 1: Identifying Ignition Switch - Viewed From Below Column

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Disconnect negative cable from battery.
3. Place key cylinder in RUN position. Through he hole in the lower shroud, depress lock cylinder retaining tab and remove key cylinder.

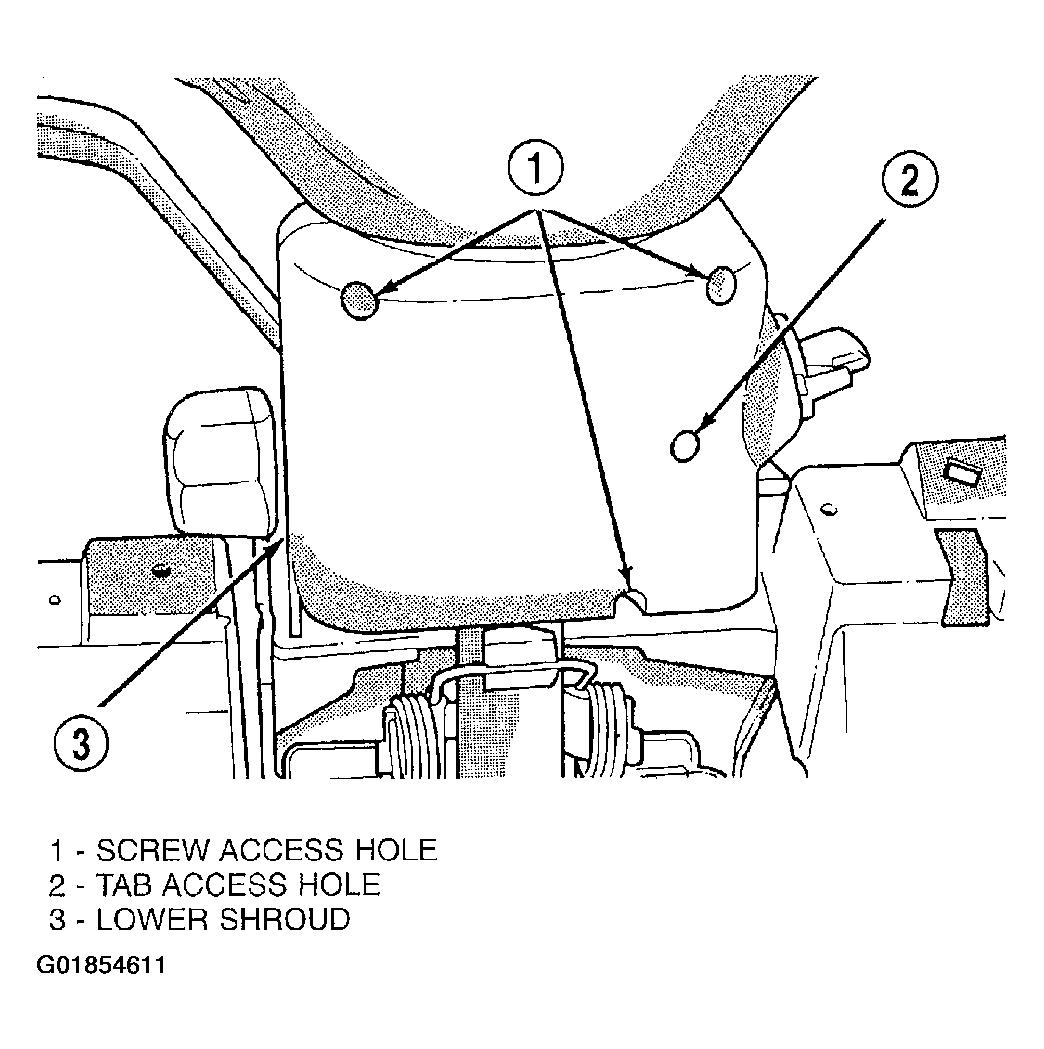

   Fig 2: Locating Steering Column Shrouds

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove upper and lower shrouds from steering column.
5. Disconnect electrical connectors from ignition switch.

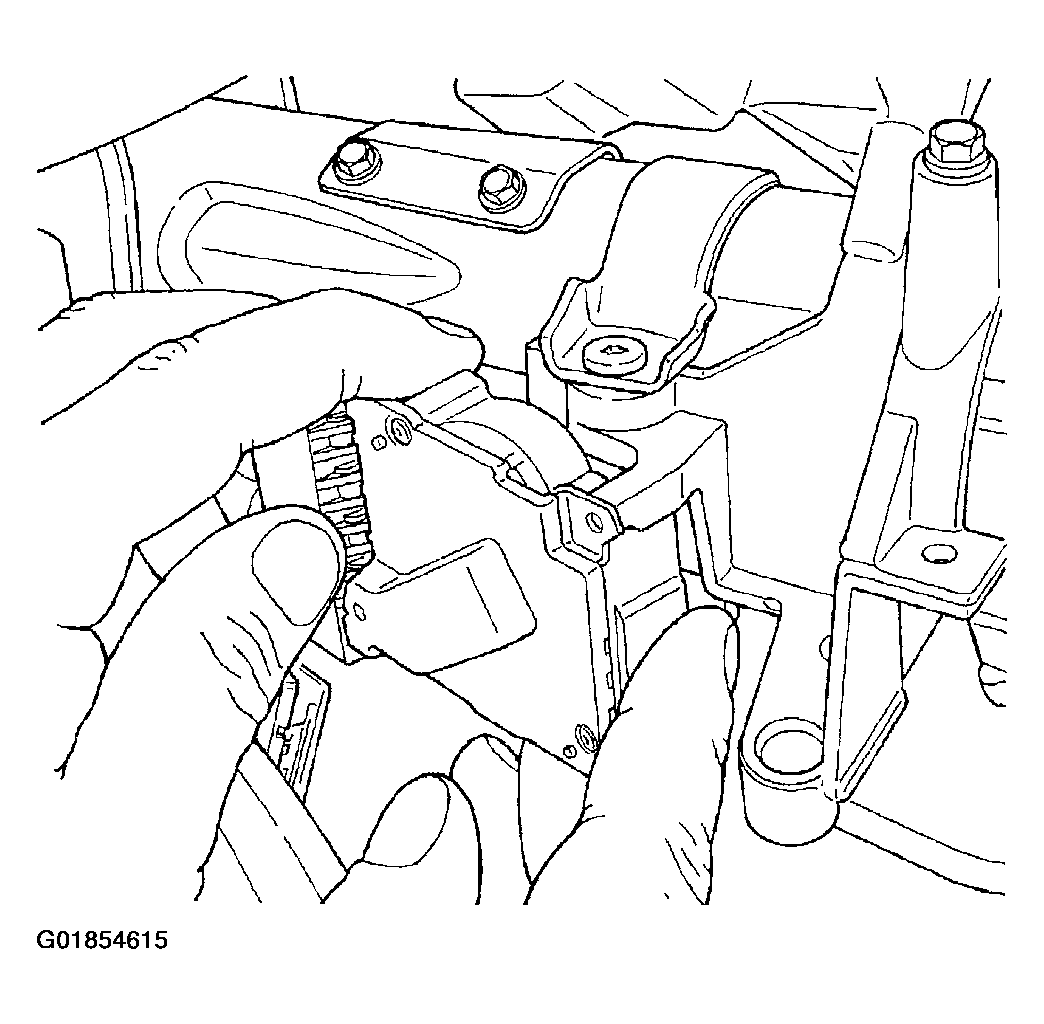

   Fig 3: Disconnecting Ignition Switch

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove the 2 screws on the top of the multifunction switch and relocate.
   Fig 4: Relocating Multi-Function Switch

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove ignition switch mounting screw with a #10 Torx bit.
   Fig 5: Removing Ignition Switch Mounting Screw

   Courtesy of DAIMLERCHRYSLER CORP.
8. Pull ignition switch from steering column.

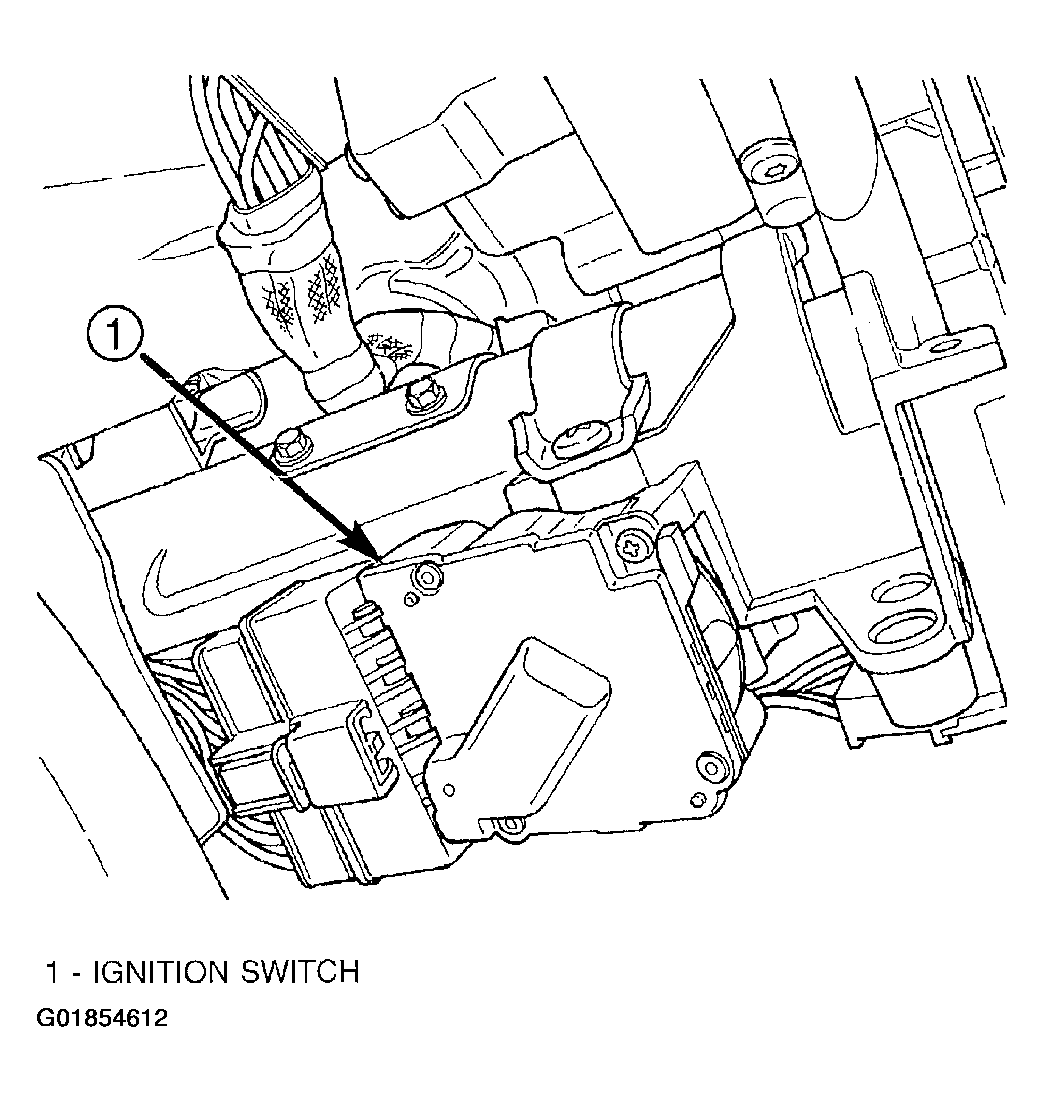

   Fig 6: Removing Ignition Switch

   Courtesy of DAIMLERCHRYSLER CORP.
