Interior Lighting
Interior Lighting

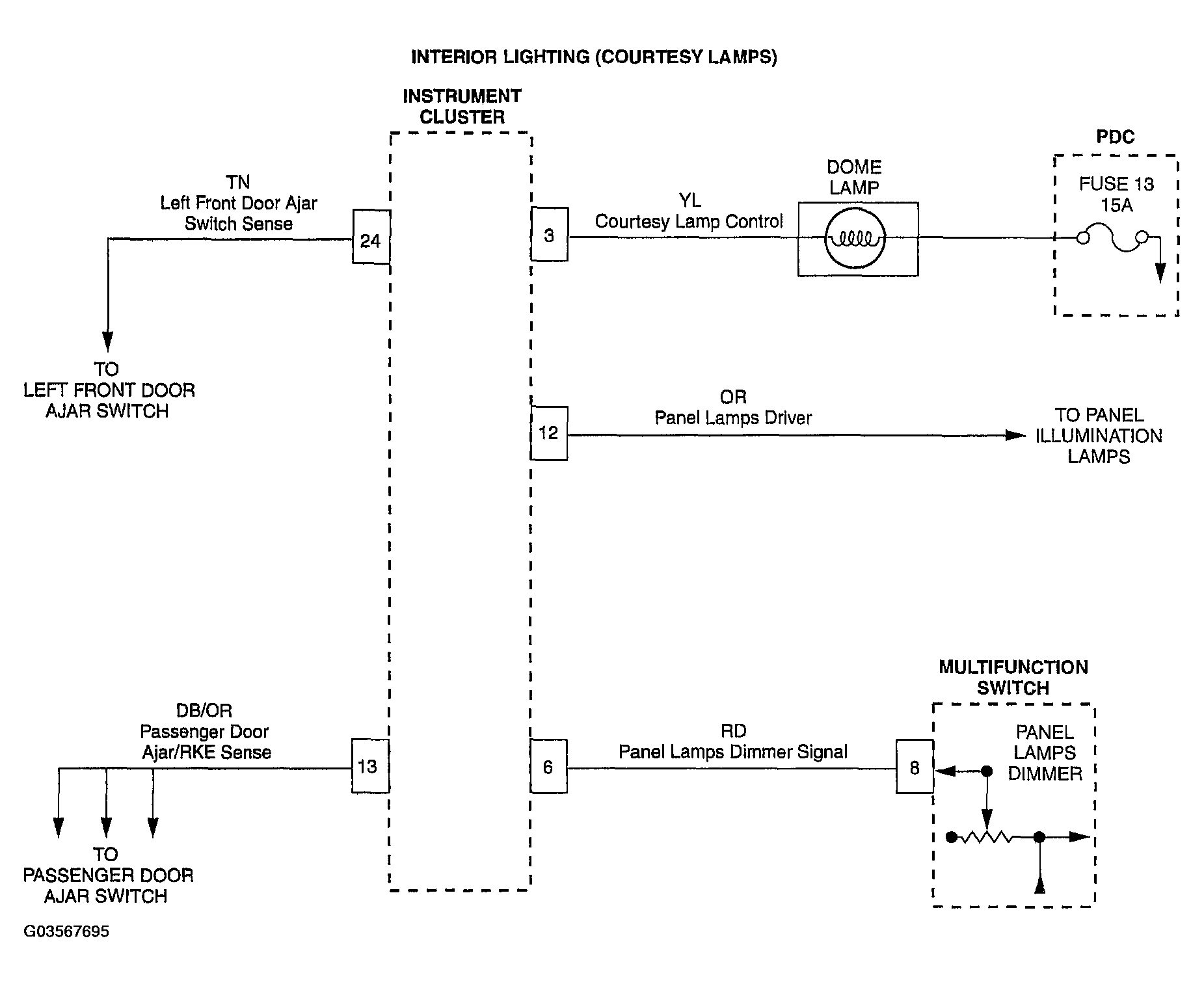

Fig 1: View Of Interior Lighting Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
