C110 Connector End View
C110 Connector End View

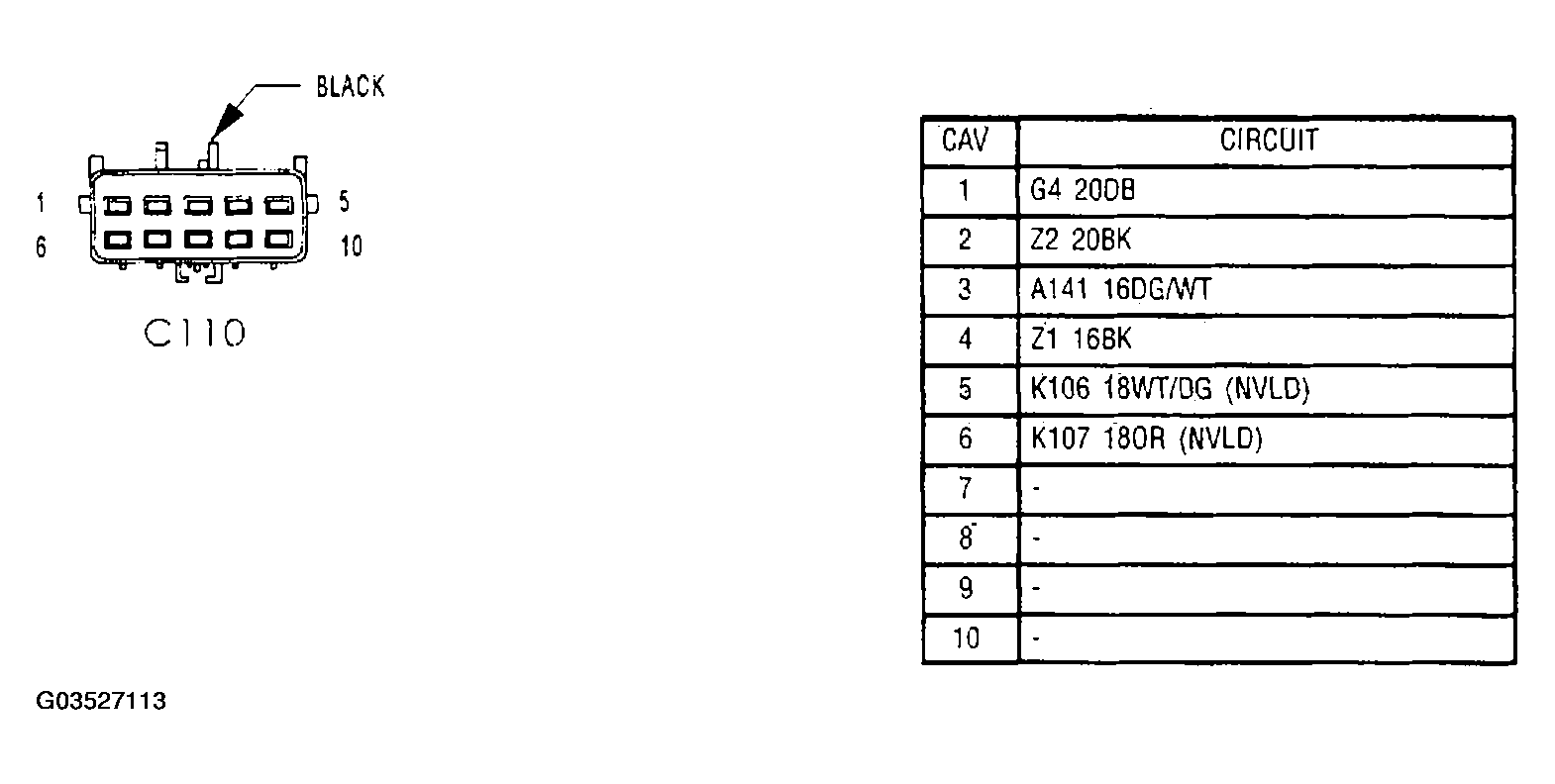

Fig 1: Headlamp & Dash Side Inline Connector End View (C110)
Courtesy of DAIMLERCHRYSLER CORP.

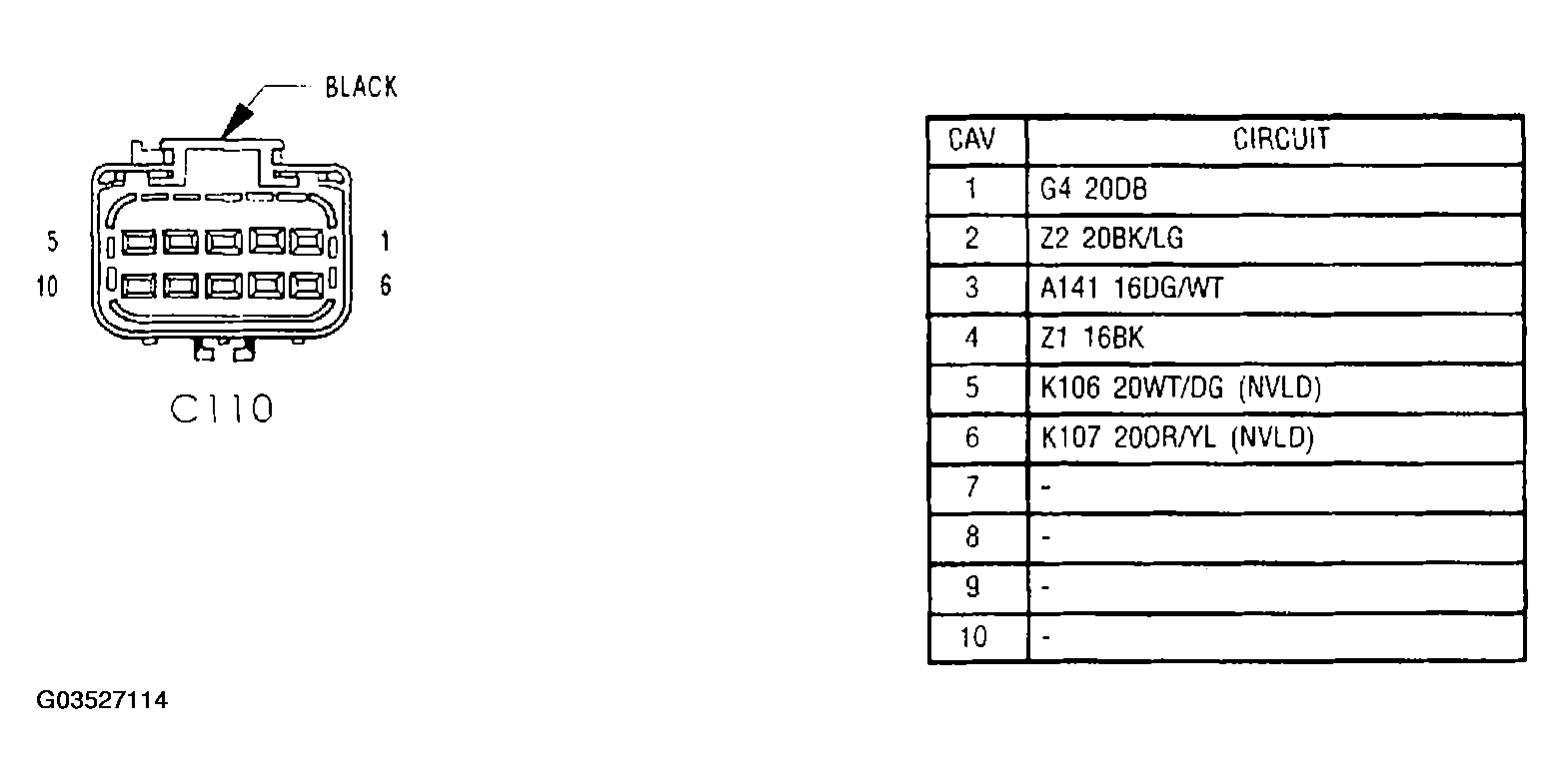

Fig 1: Underbody Side Inline Connector End View (C110)
Courtesy of DAIMLERCHRYSLER CORP.
C110
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
