Connector End Views
›
Left Front Wheel Speed Sensor Connector End View
Left Front Wheel Speed Sensor Connector End View

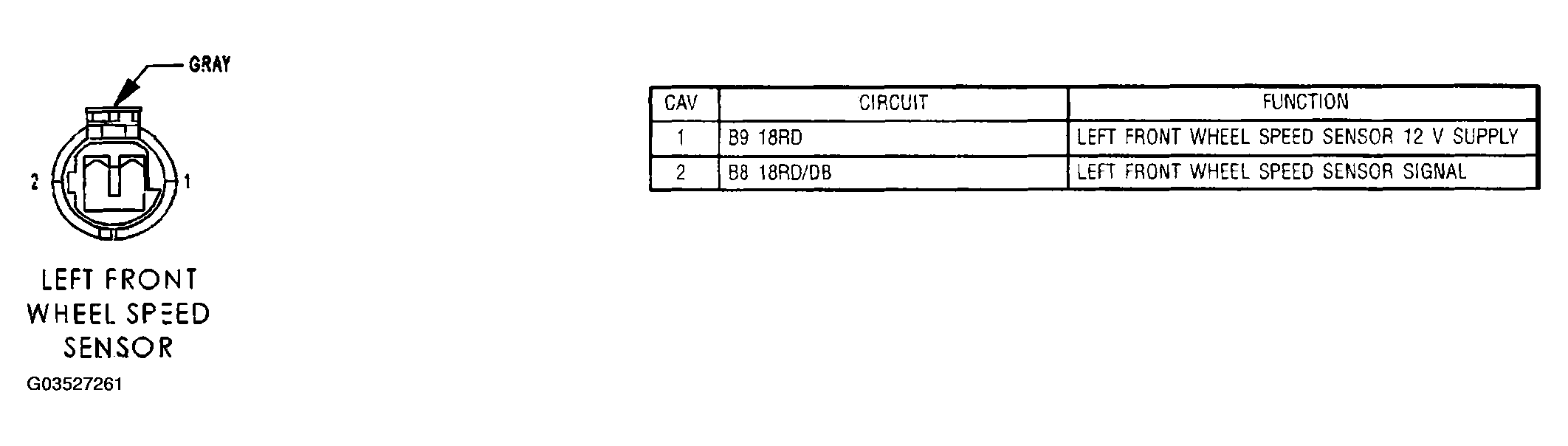

Fig 1: Left Front Wheel Speed Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
