Map/Reading Lamps Connector End View
Map/Reading Lamps Connector End View

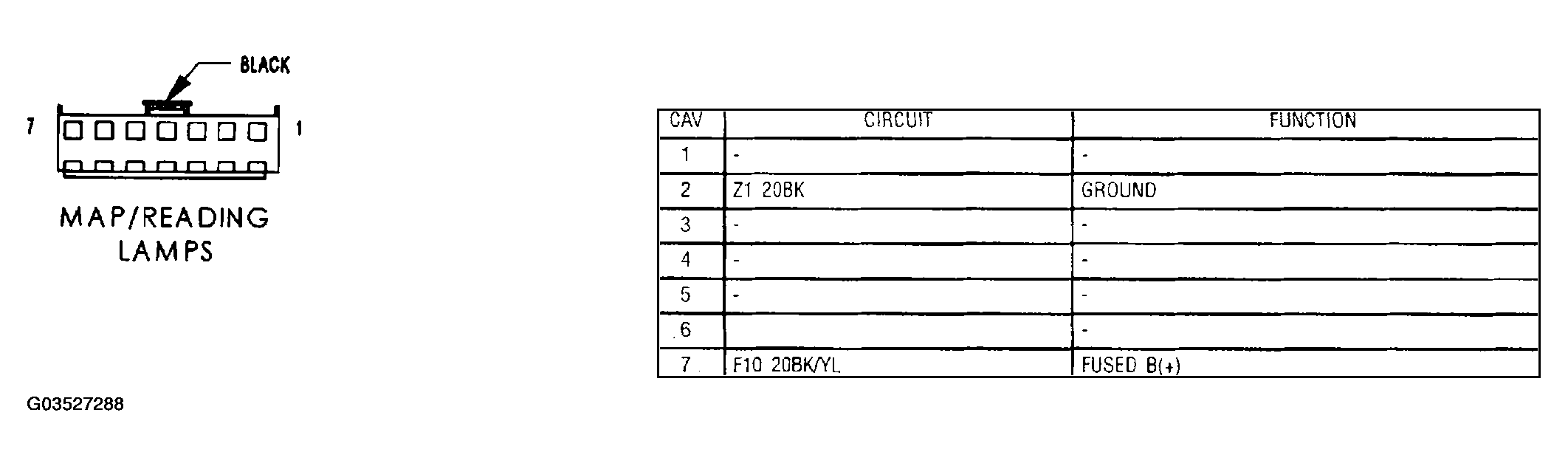

Fig 1: Map Lamps / Reading Lamps Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
