Power Sunroof Module C2 Connector End View

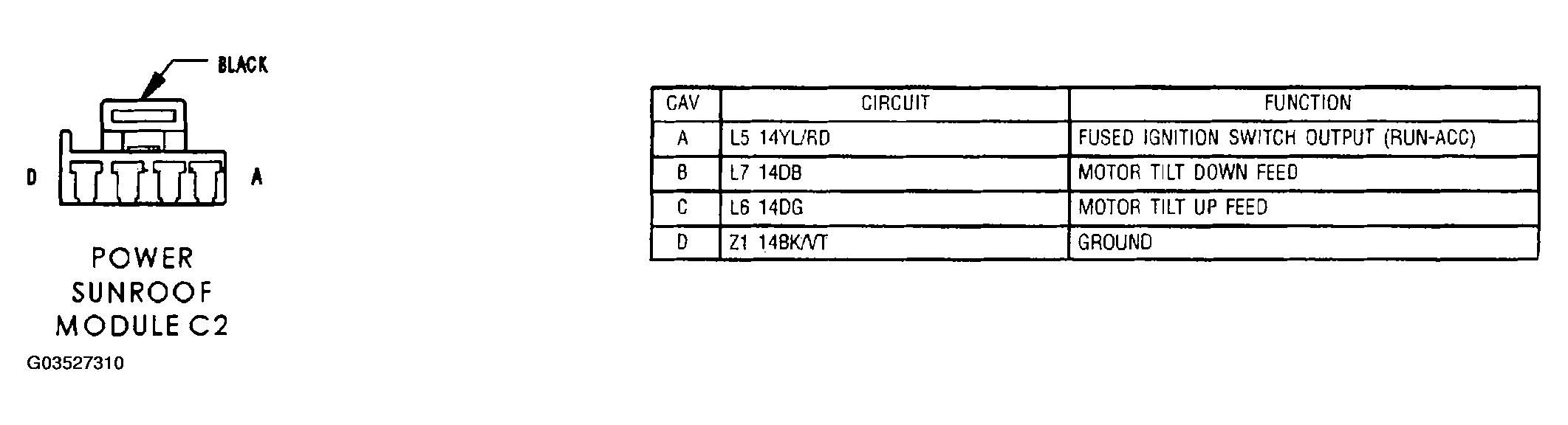

Fig 1: Power Sunroof Module Connector End View (C2)
G03527310Courtesy of DAIMLERCHRYSLER CORP.
