EVAP/Purge Solenoid: Description

All vehicles use a proportional purge solenoid. The solenoid regulates the rate of vapor flow from the EVAP canister to the throttle body. The PCM operates the solenoid.

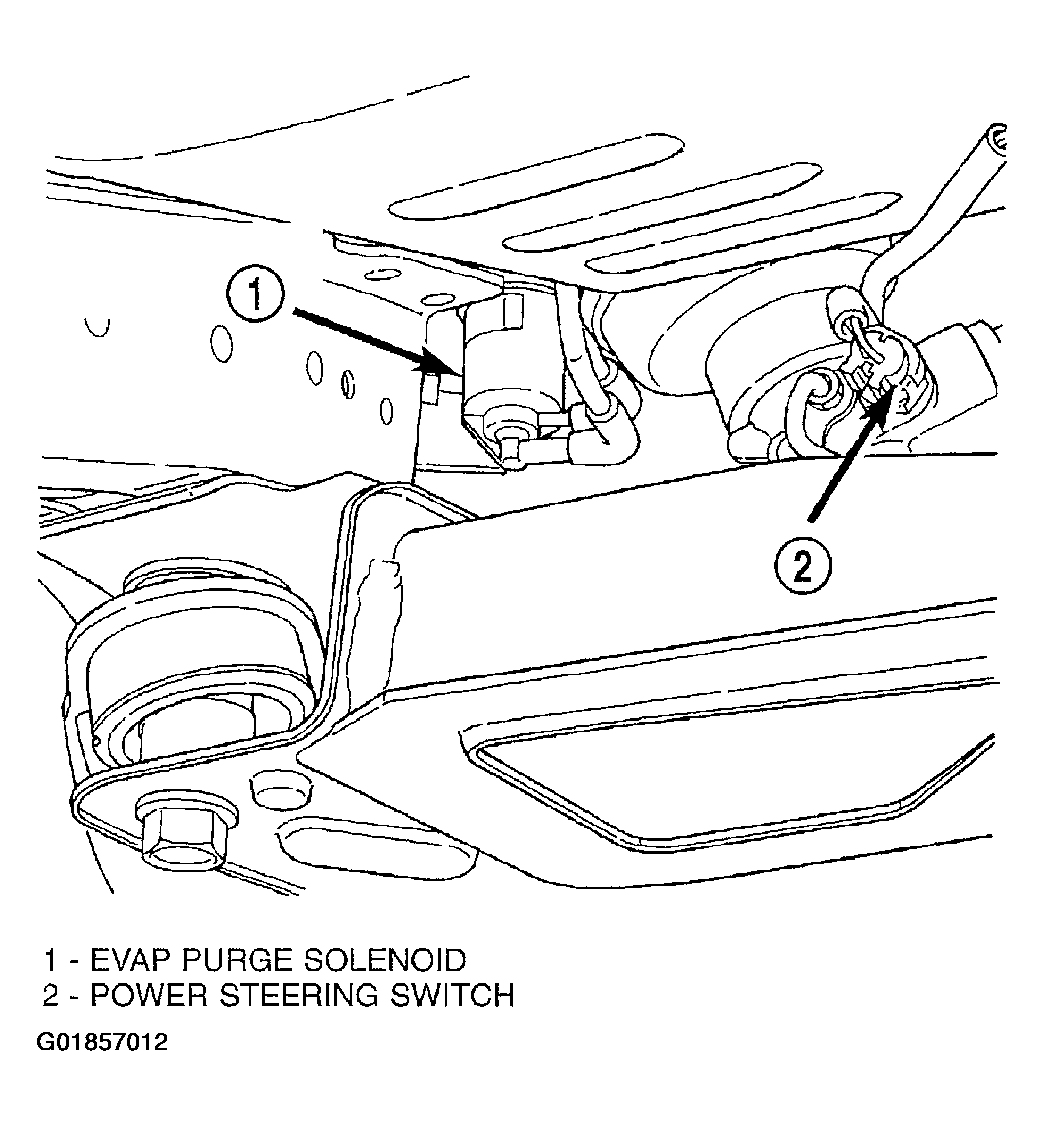

Fig 1: Identifying Proportional Purge Solenoid
G01857012Courtesy of DAIMLERCHRYSLER CORP.
