Natural Vac Leak Detection ASSY: Removal

Release fuel pressure, see FUEL SYSTEM article.
Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
Remove the negative battery cable.
Raise vehicle and support.
Drain fuel tank. See FUEL SYSTEM article.
Remove fuel tank and EVAP system. See FUEL SYSTEM article.

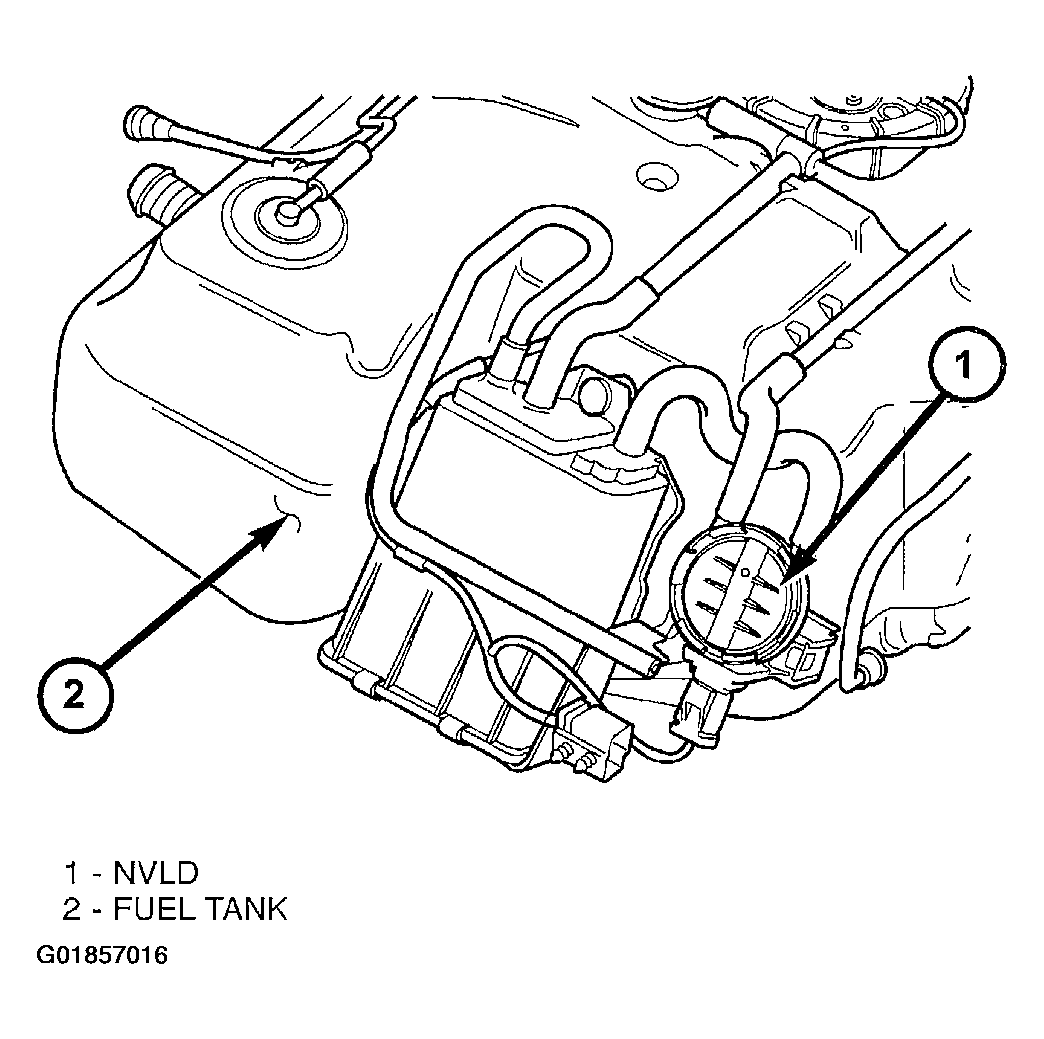

Fig 1: Identifying Fuel Tank Assembly
Courtesy of DAIMLERCHRYSLER CORP.

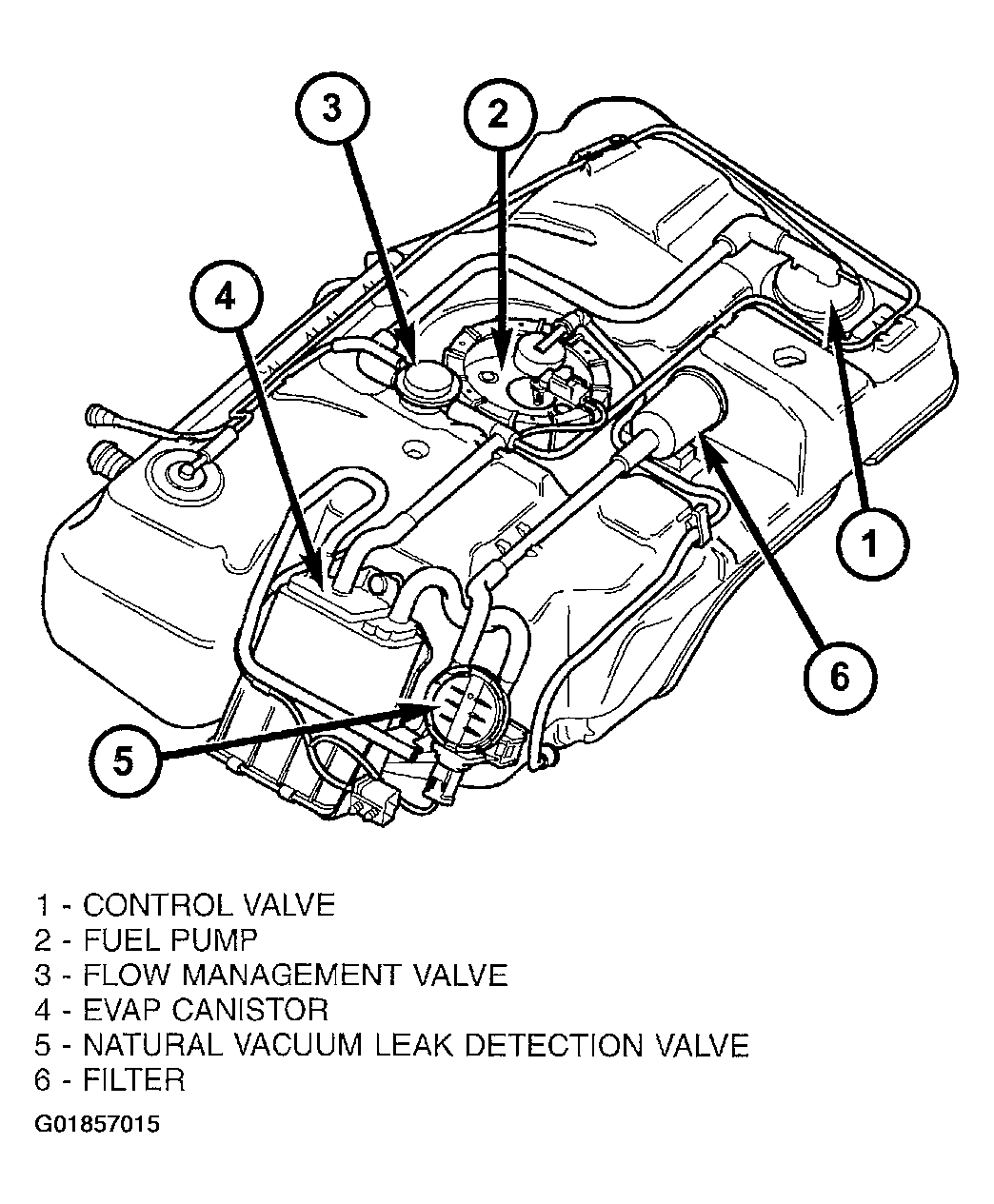

Fig 2: Identifying EVAP System
Courtesy of DAIMLERCHRYSLER CORP.
Remove hoses from NVLD assembly.
Remove the bolts from the NVLD Assembly.
