*Checking Fuel Delivery
›
Testing
*Checking Fuel Delivery: Testing

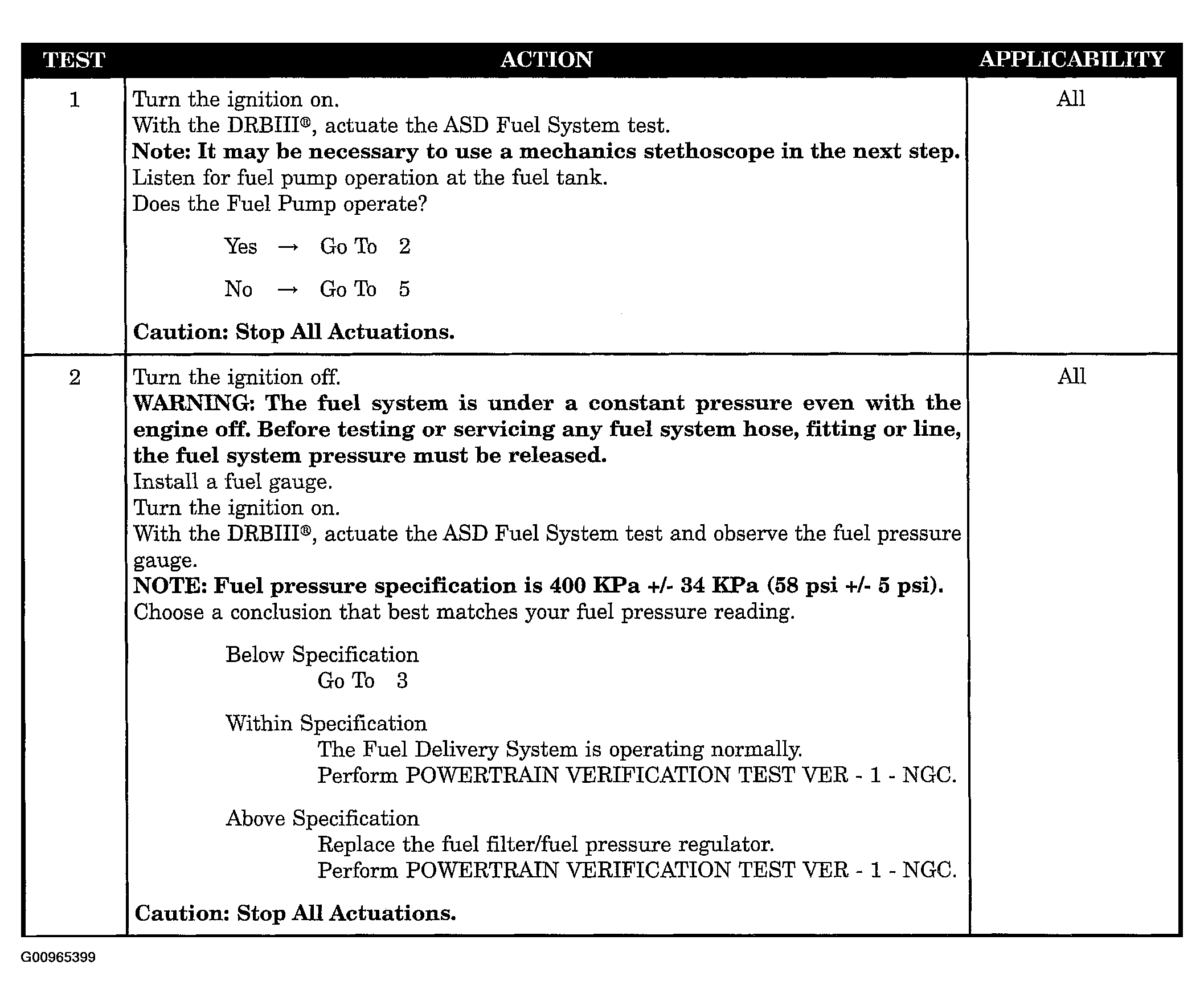

Fig 1: Testing: *Checking Fuel Delivery (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

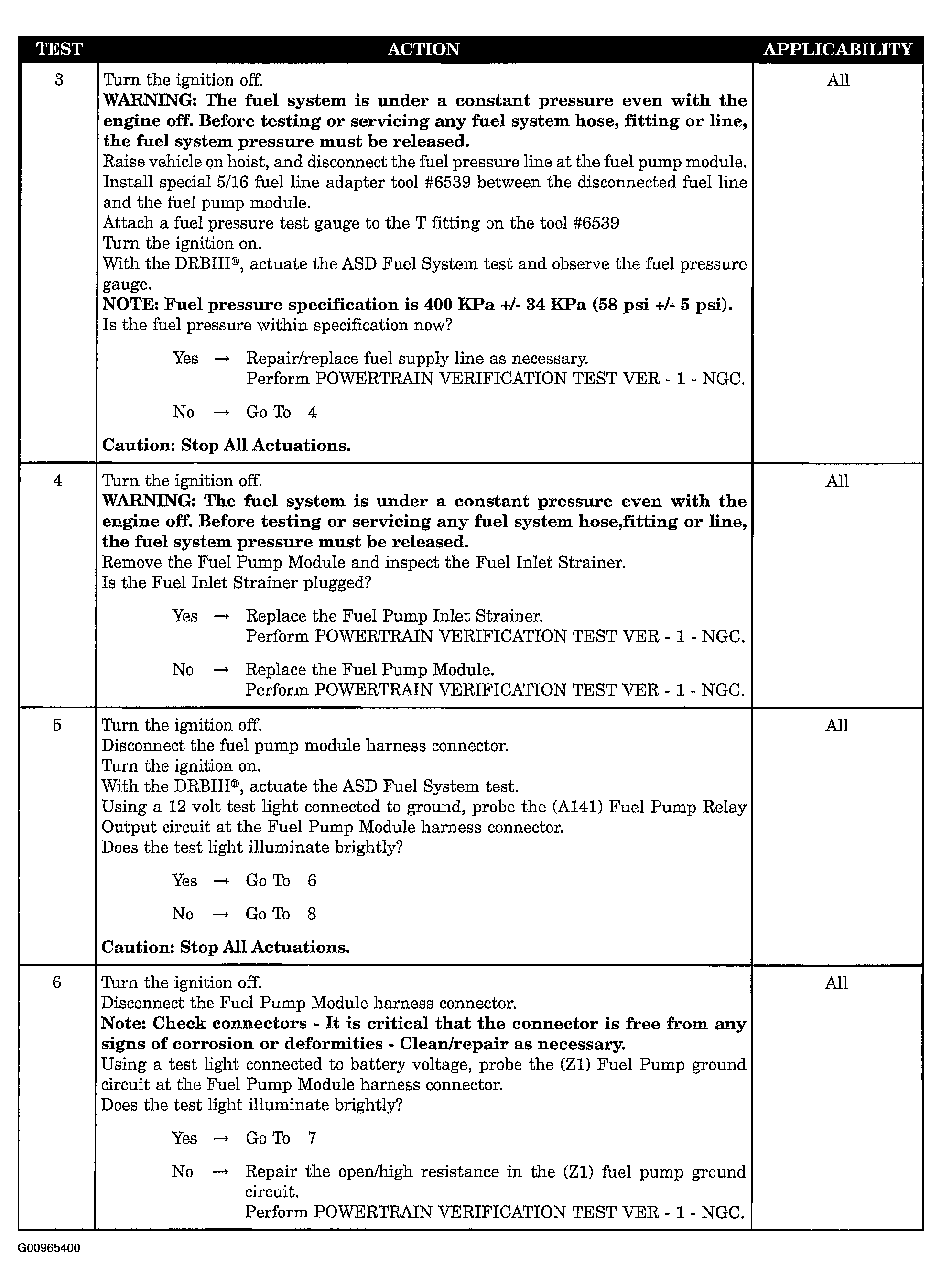

Fig 2: Testing: *Checking Fuel Delivery (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

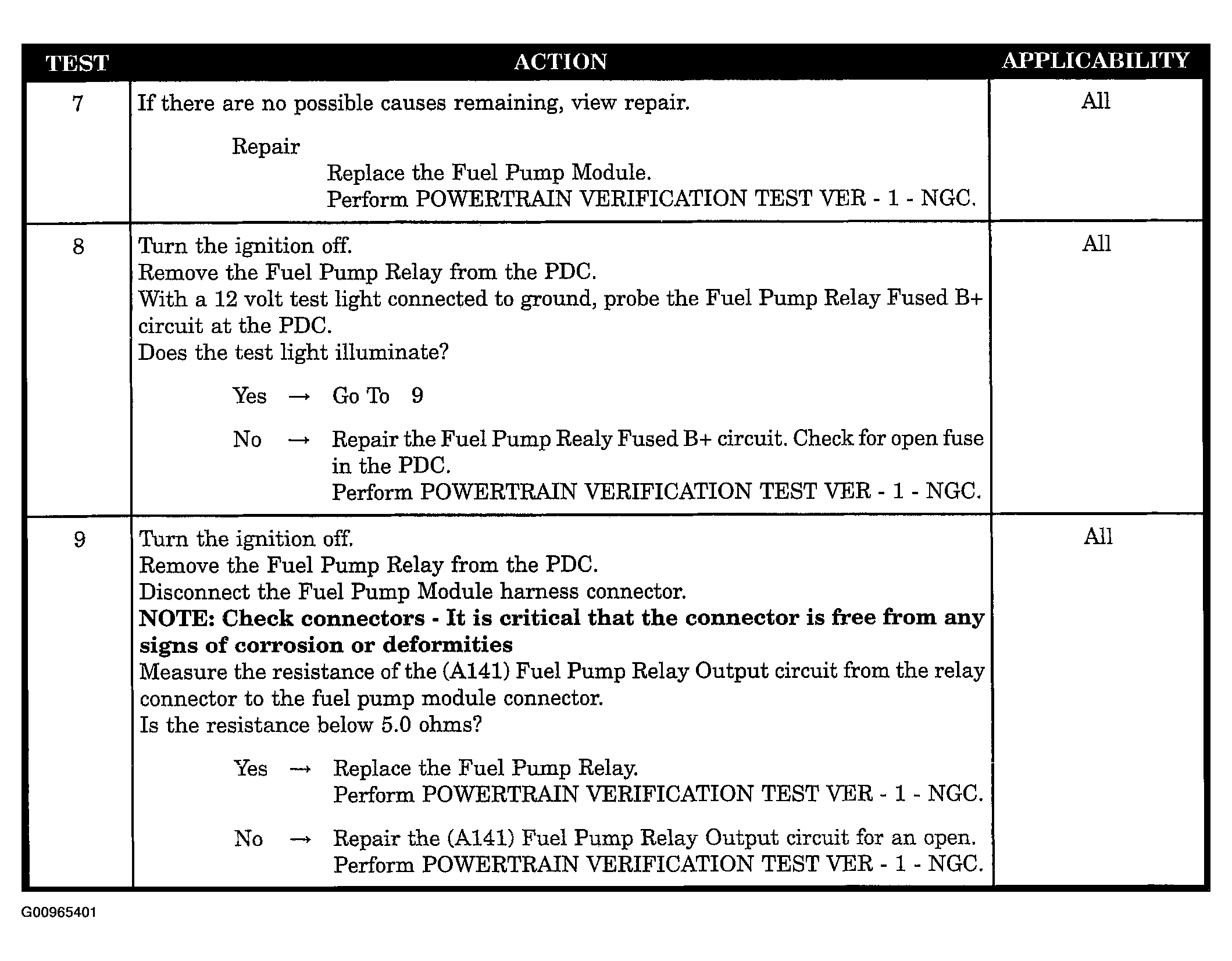

Fig 3: Testing: *Checking Fuel Delivery (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
