Ignition Coils

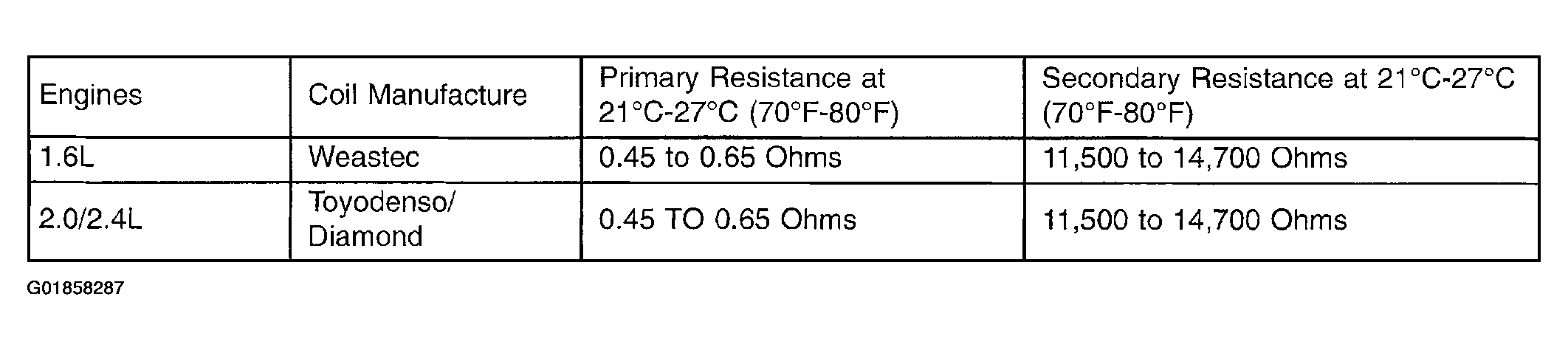

Fig 1: Identifying Ignition Coil Specifications

Courtesy of DAIMLERCHRYSLER CORP.

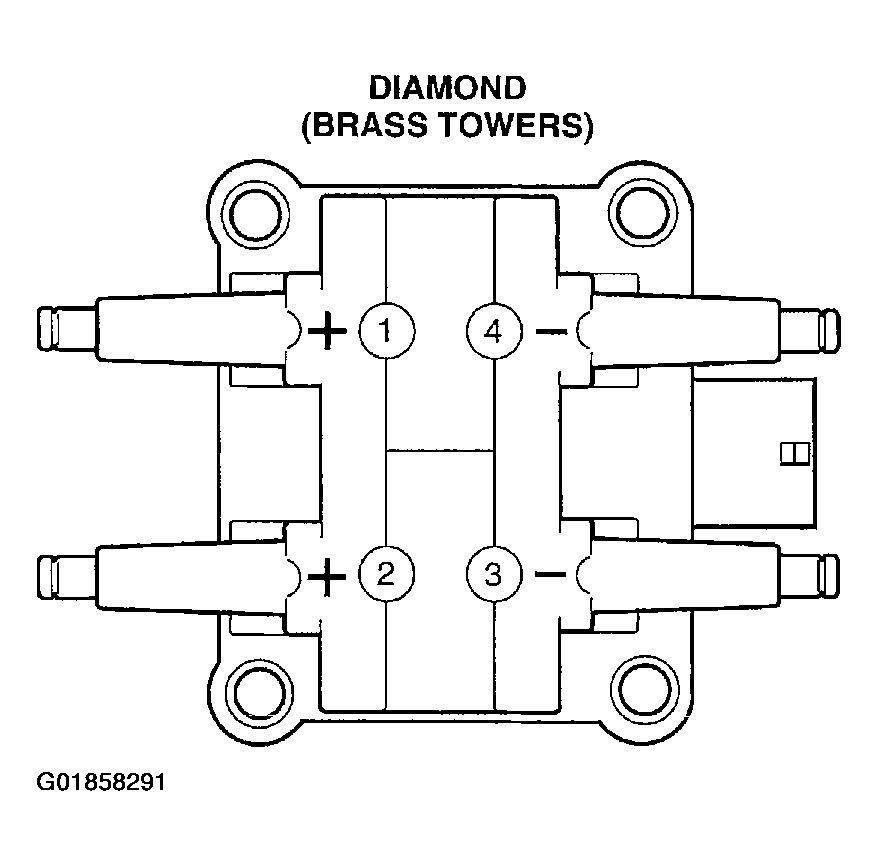

Fig 2: Identifying Ignition Coil - Diamond (Brass Towers)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Ignition Coil - Weastec (Silver Towers)

Courtesy of DAIMLERCHRYSLER CORP.
