Powertrain Control Module (1.6L) Connector End View
Powertrain Control Module (1.6L) Connector End View

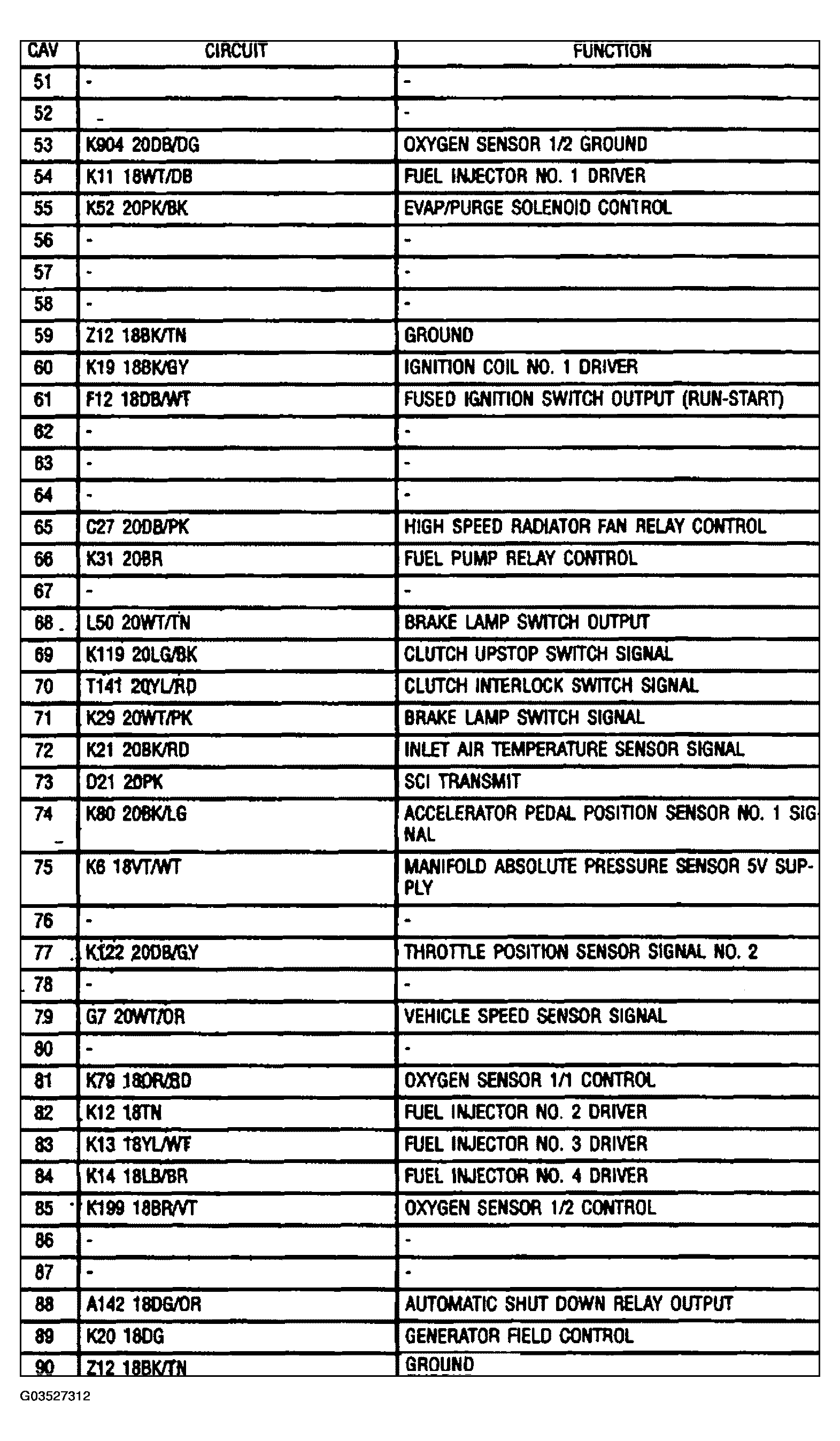

Fig 1: Powertrain Control Module (1.6L) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.

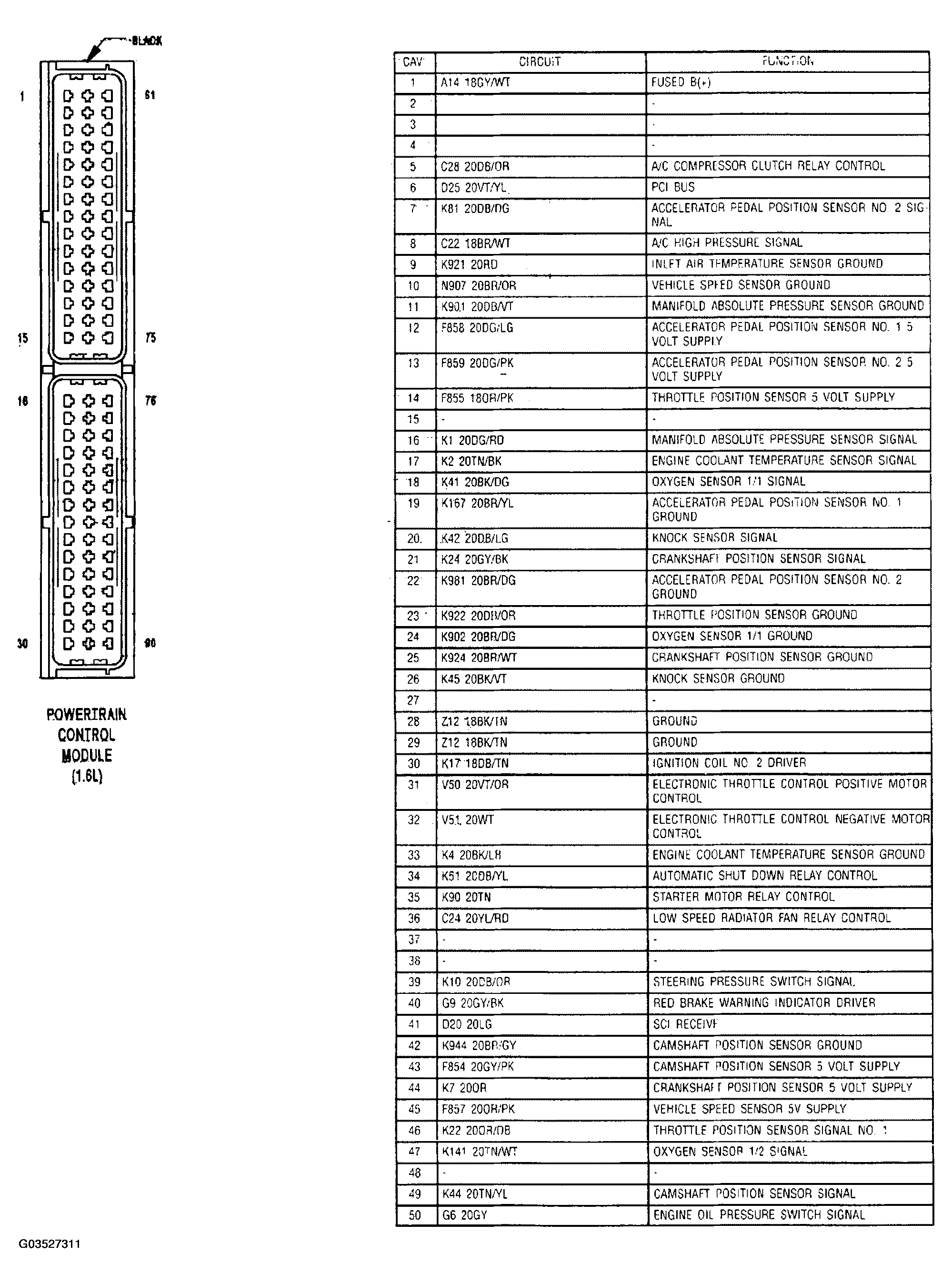

Fig 2: Powertrain Control Module (1.6L) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
