Front Power Window Switch Connector End View

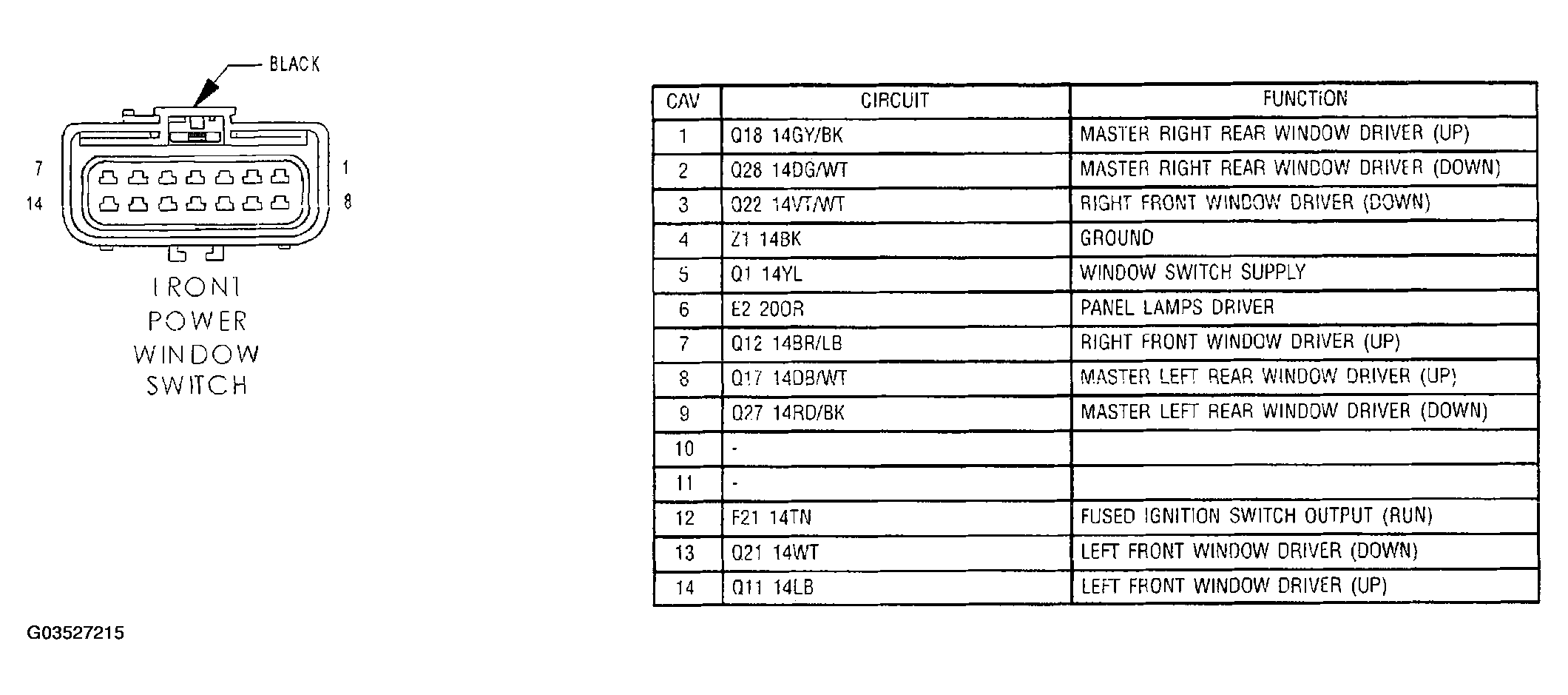

Fig 1: Front Power Window Switch Connector End View
G03527215Courtesy of DAIMLERCHRYSLER CORP.
