Overhead Console Module Connector End View
Overhead Console Module Connector End View

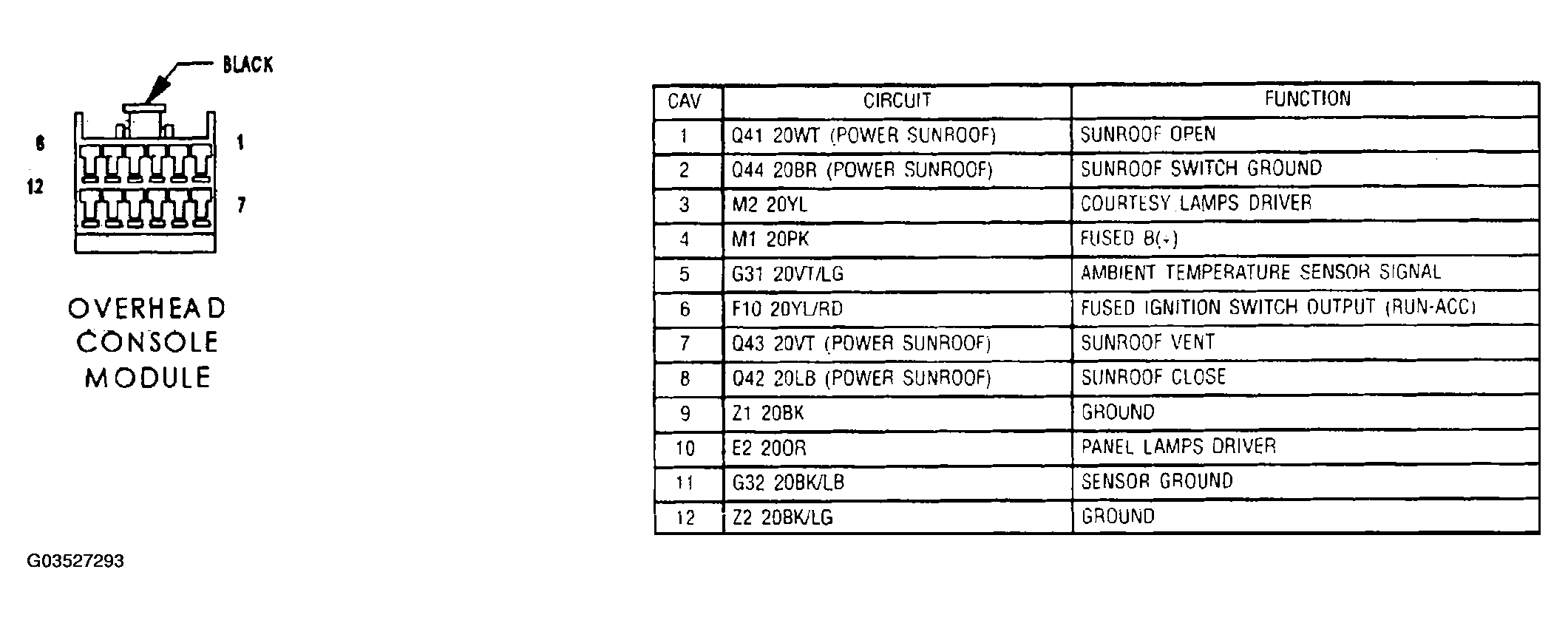

Fig 1: Overhead Console Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
